Mono MM cartridge with a 25 µm spherical diamond for mono microgroove records. Delivers 4 mV and works with standard MM phono inputs. Read more.

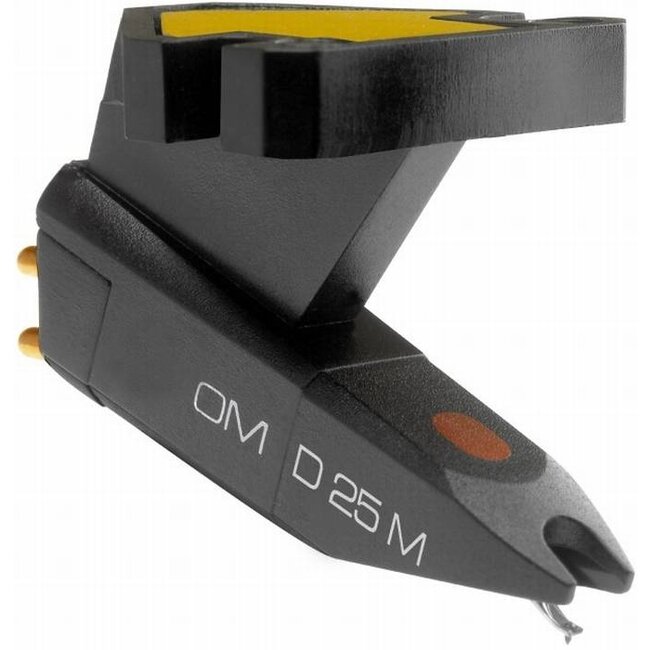

The Ortofon OM D25M is a Moving Magnet cartridge specifically tuned for playing mono microgroove records. Its 25 µm spherical diamond matches the groove geometry of many original mono LPs, EPs and singles. With a 4 mV output, the cartridge can be connected directly to a standard MM phono input. The replaceable stylus also makes future maintenance straightforward without requiring replacement of the complete cartridge.
Explore all Ortofon products and our full range of turntable cartridges.
| Product type | Moving Magnet mono cartridge |
| Output voltage | 4 mV at 1 kHz, 5 cm/s, lateral (mono) |
| Frequency range at -3 dB | 20 - 20,000 Hz |
| Frequency response | 20 - 18,000 Hz (+3/-2 dB) |
| Tracking ability at 315 Hz | More than 70 µm at recommended tracking force |
| Dynamic lateral compliance | 7 µm/mN |
| Stylus type | Spherical diamond |
| Stylus-tip radius | R 25 µm (1 mil) |
| Tracking-force range | 2.0 - 3.0 g (20 - 30 mN) |
| Recommended tracking force | 2.5 g (25 mN) |
| Tracking angle | 20° |
| Internal impedance | 750 ohms |
| Internal inductance | 450 mH |
| Recommended load resistance | 47 kOhms |
| Recommended load capacitance | 200 - 600 pF |
| Mounting | Standard half-inch mount |
| Cartridge/stylus colour | Black/black |
| Weight | 5 g |
| Replacement stylus | Ortofon Stylus D 25 M |
The OM D25M is particularly suitable for original mono LPs, EPs and singles with microgrooves intended for a 25 µm stylus. Carefully mount and align the cartridge, then set the tracking force to 2.5 grams. This cartridge is not intended for standard 78 rpm shellac records; for those records, choose the Ortofon OM 78 with its larger 65 µm stylus.
