Ortofon Cartridge Alignment Tool - precise Baerwald alignment

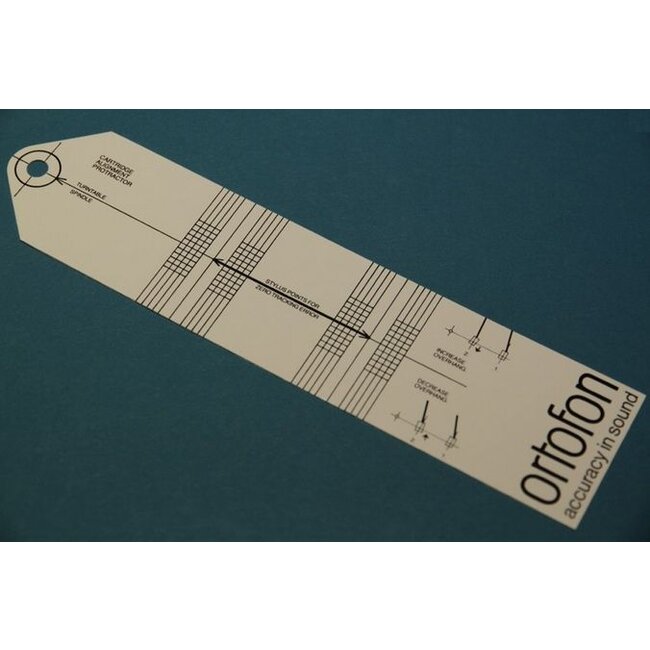

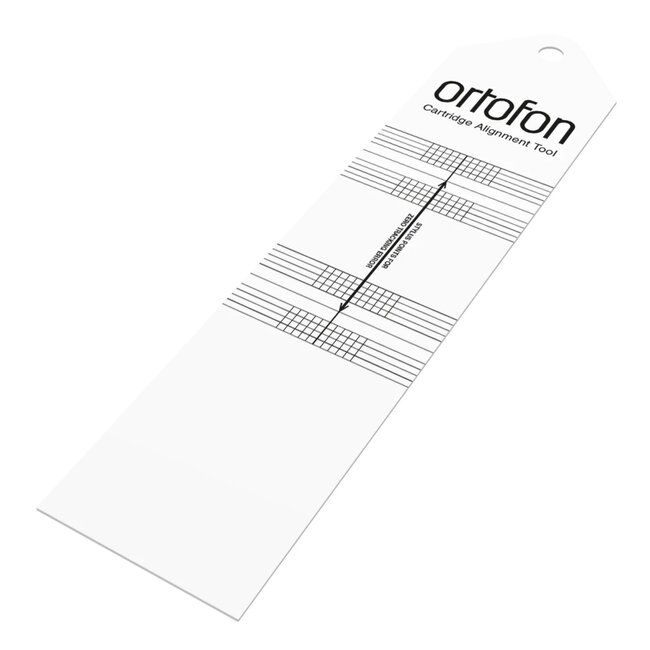

Correct cartridge alignment is essential for consistent tracking and accurate playback across your records. The Ortofon Cartridge Alignment Tool is an easy-to-use two-point protractor based on Baerwald alignment geometry. Its two clearly marked null points and reference grids help you position the cartridge and cantilever accurately. It is a practical tool for installing a new cartridge, replacing an existing model or checking whether your current setup is still correctly aligned.

Explore all Ortofon products. After alignment, check the tracking force with the Ortofon Scale stylus pressure gauge.

Main features

• Two-point cartridge protractor based on Baerwald geometry
• Two clearly marked null points for accurate adjustment
• Reference grids for aligning the cantilever parallel to the guide lines
• Helps minimise tracking error across the record
• For cartridges that can be moved and rotated within the headshell slots
• Suitable for cartridge installation, replacement and alignment checks

How to use the Ortofon alignment tool

1. Switch off the turntable and place the alignment tool flat over the platter spindle.
2. Carefully loosen the cartridge mounting screws so the cartridge can still be moved and rotated.
3. Gently lower the stylus onto the first marked null point.
4. View the cantilever at eye level and adjust the cartridge until the cantilever is parallel to the reference lines.
5. Repeat the procedure at the second null point. Continue making small adjustments until the cantilever is parallel at both positions, then tighten the screws and recheck the alignment.

Technical specifications Ortofon Cartridge Alignment Tool

Setup advice

Always align the cantilever rather than relying solely on the outside edges of the cartridge body. The cantilever may not be perfectly parallel to the housing. Work carefully, make small adjustments and avoid placing sideways pressure on the stylus. If your turntable or tonearm manufacturer specifies a different alignment geometry, follow the manufacturer's instructions.

For a step-by-step explanation, consult the official Ortofon cartridge alignment guide.
