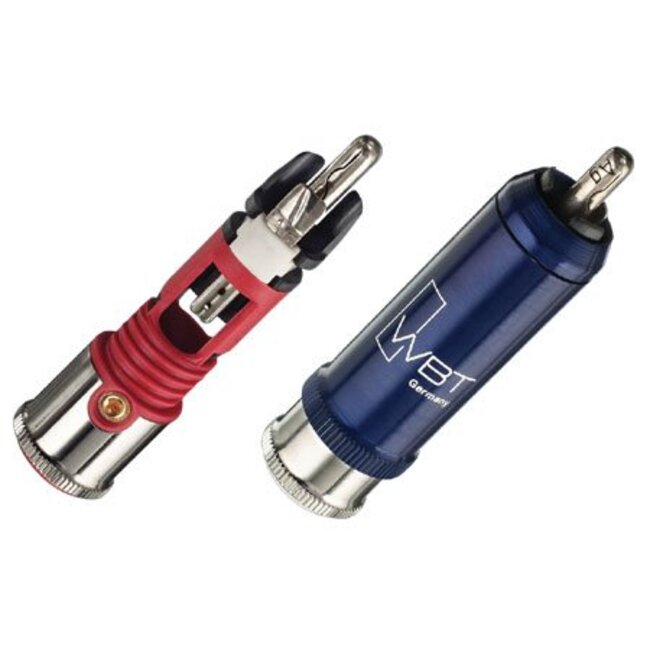

The WBT 0110 Ag Nextgen™ represents the pinnacle of audio technology and precision engineering. Read more.

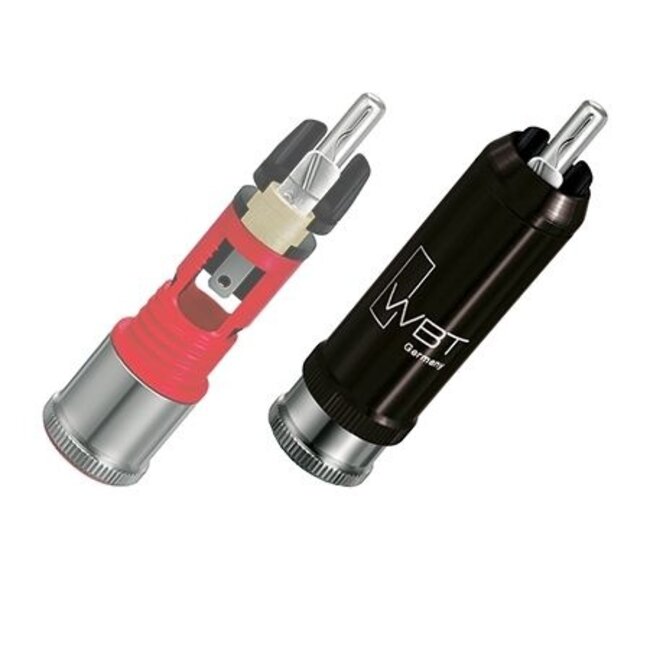

The WBT-0110 Ag nextgen™ is an uncompromising RCA/phono plug designed for premium digital and analogue connections. Its 75-ohm characteristic impedance and transmission bandwidth of up to 1 GHz make it an excellent choice for digital coaxial links as well as analogue broadband applications.
The one-piece signal contacts are manufactured from high-purity fine silver. Its outstanding electrical conductivity supports fast, accurate signal transfer. The low-metal-mass nextgen™ construction prevents disruptive eddy currents, thereby avoiding the signal distortion associated with conventional metal-heavy connectors.
WBT’s patented clamping mechanism operates like the chuck of a drill. Tightening the sleeve firmly clamps the outer contact against the RCA socket. The resulting high contact pressure provides a secure mechanical connection while minimising contact resistance.
The two-piece clamping sleeve prevents torsional stress on the contact elements during tightening. It also compensates for minor dimensional differences between RCA sockets. The slotted centre pin creates a firm yet elastic contact for lasting and reliable electrical performance.
The WBT-0110 Ag accepts cables with an outside diameter of up to 9 mm. Connections may be soldered or crimped using a 2.8 mm flat receptacle. A Torx T.6 screw provides secure strain relief. WBT recommends the WBT-0488 Torx T.6 key and WBT-0800 silver solder for assembly.
Explore more premium connectors and termination solutions from WBT at Hi-Stands.
| Type | nextgen™ RCA/phono plug |
| Application | Digital and analogue connections |
| Signal conductors | Fine silver |
| Characteristic impedance | 75 ohms up to 1 GHz |
| Self-capacitance | Approx. 2.5 pF |
| Termination | Solder or crimp with 2.8 mm flat receptacle |
| Maximum cable diameter | 9 mm |
| Dimensions | Ø 13.6 × 51 mm |
| Strain relief | Torx T.6 screw |
| Compliance | RoHS compliant |
