Review 2M BRONZE Stylus
€319,00
€259,00
Op werkdagen voor 17:00 besteld is morgen in huis!
Hi-Stands webshop.
-
Fast shippingSame day Dispatched: If ordered before 17:00 on working days!
-
14 days to change your mindWe are only satisfied when you are.
-
Contact us via the mailAnd your question will be answered as soon as possible!
-
Affiliated with 2 quality marksSafe and trustworthy!
Description

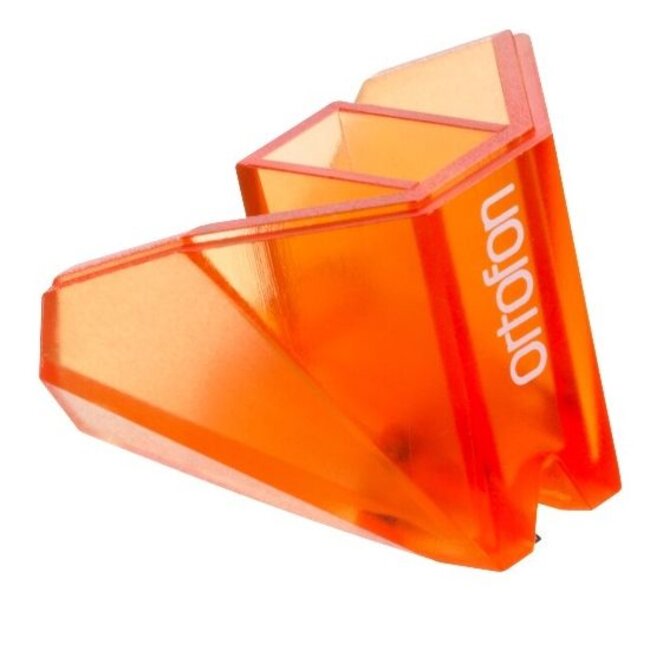

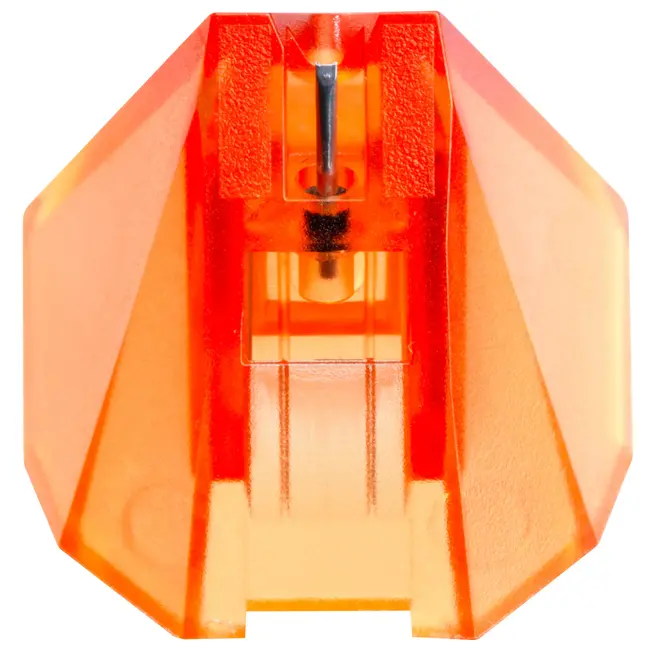

THE 2M BRONZE REPLACEMENT STYLUS IS A GENUINE REPLACEMENT PART FOR ORTOFON 2M BRONZE AND 2M BRONZE VERSO CARTRIDGES
FEATURES:
FEATURES:
Nude Fine Line diamond
Silver plated copper wire
Reduced distortion and record wear
For demanding applications
TECHNICAL DATA:
TECHNICAL DATA:
Output voltage at 1000 Hz, 5cm/sec.: 5 mV
Channel balance at 1 kHz: 1 dB
Channel separation at 1 kHz: 26 dB
Channel separation at 15 kHz: 15 dB
Frequency range at - 3dB: 20-29.000 Hz
Frequency response: 20-20.000 Hz + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force: 80 µm
Compliance, dynamic, lateral: 22 µm/mN
Stylus type: Nude Fine Line
Stylus tip radius: r/R 8/40 µm
Tracking force range: 1,4-1,7g (14-17 mN)
Tracking force, recommended: 1,5 g (15 mN)
Tracking angle: 20º
Internal impedance, DC resistance: 1,2 kOhm
Internal inductance: 630 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
