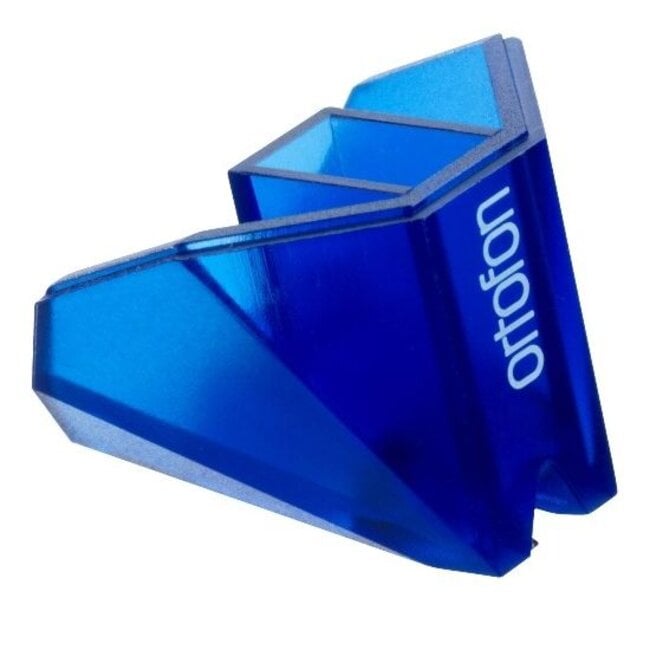

THE 2M BLUE REPLACEMENT STYLUS IS A GENUINE REPLACEMENT PART FOR ORTOFON 2M BLUE AND 2M BLUE VERSO CARTRIDGES
Nude Elliptical diamond
Exceptionel value for money
Output voltage at 1000 Hz, 5cm/sec.: 5,5 mV
Channel balance at 1 kHz: 1,5 dB
Channel separation at 1 kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency range at - 3dB: 20-25.000 Hz
Frequency response: 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 80 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20º
Internal impedance, DC resistance: 1,3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
