The WiiM Ultra is a versatile hi-res music streamer, DAC and digital preamplifier with an ESS SABRE DAC, 3.5-inch touchscreen, HDMI ARC, MM/MC phono input, RoomFit room correction and Roon Ready support. Read more.

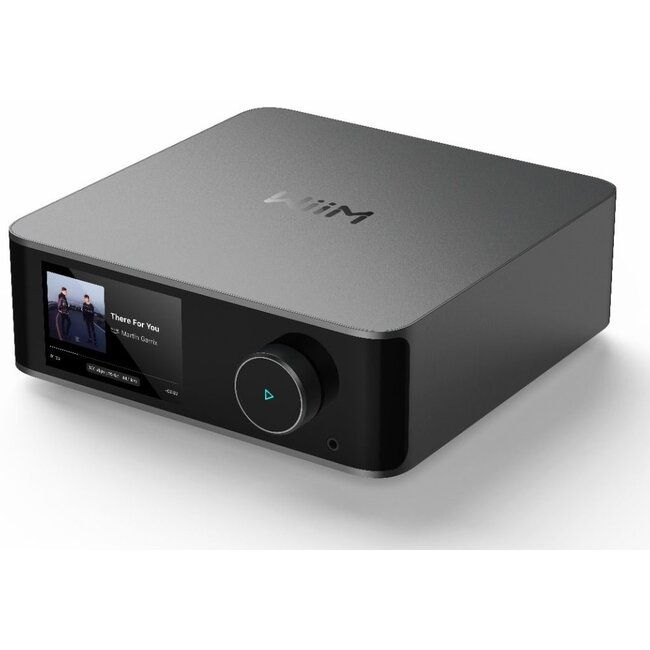

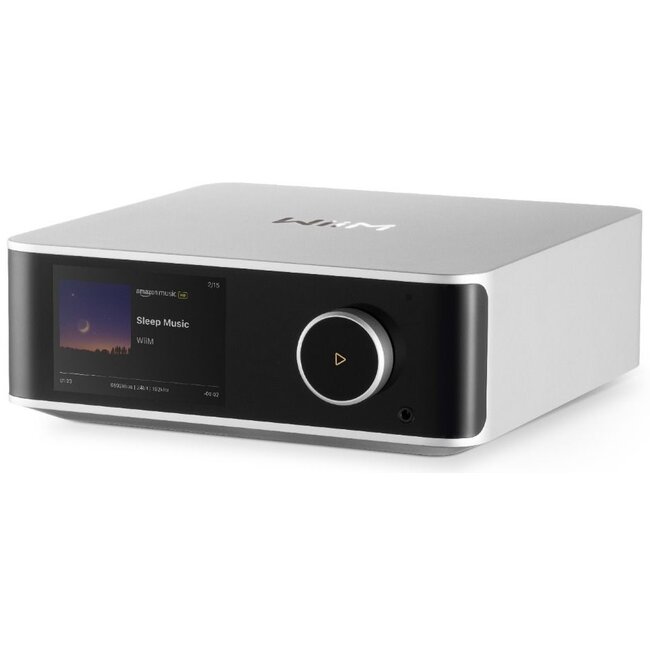

The WiiM Ultra is a versatile hi-res music streamer for listeners who want to combine modern music streaming, high-quality digital-to-analogue conversion and extensive connectivity in one compact device. It functions as a music streamer, DAC, digital preamplifier, headphone amplifier and central audio hub for an amplifier, active speakers, television, turntable, subwoofer and headphones.
With its ESS ES9038Q2M SABRE DAC, audio playback up to 24-bit/192kHz, 3.5-inch colour touchscreen and extensive WiiM Home app, the Ultra is a highly complete solution for both modern and existing hi-fi systems. Explore the complete selection of WiiM streamers and streaming amplifiers available from Hi-Stands.
Analogue audio conversion is handled by an ESS ES9038Q2M SABRE DAC. The RCA line output supplies up to 2.1V RMS and has a signal-to-noise ratio of 121dB. This allows the WiiM Ultra to be connected directly to an integrated amplifier, preamplifier or pair of active speakers.
The WiiM Ultra supports music playback and digital audio at resolutions up to 24-bit/192kHz. This includes its optical, coaxial and USB audio outputs. Gapless playback is also supported, allowing live albums and classical recordings to play without audible pauses between tracks.

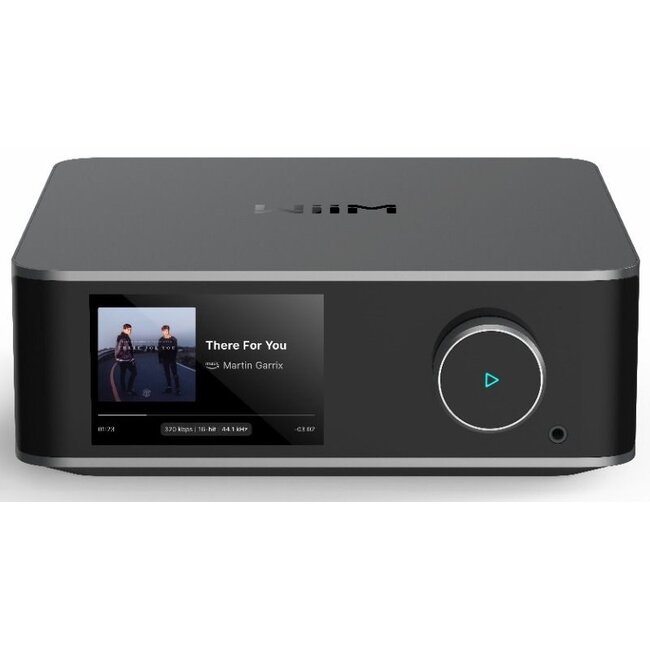

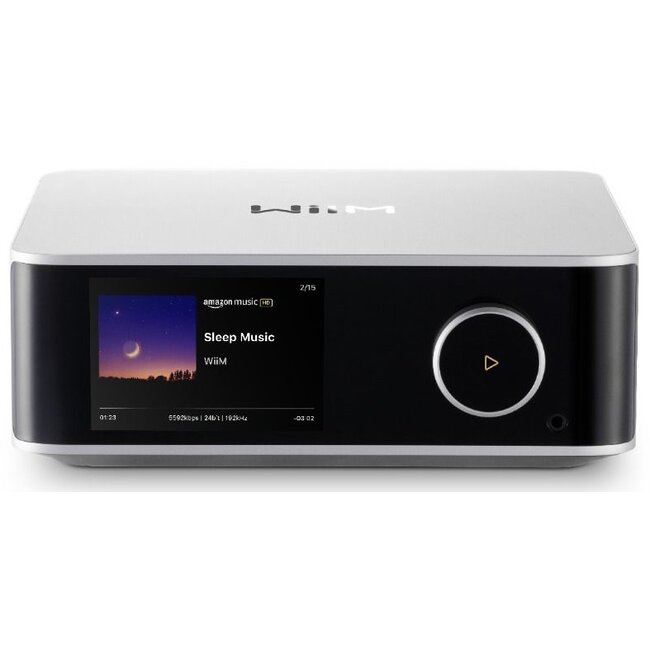

A clear 3.5-inch colour touchscreen is located on the front panel. It displays album artwork, playback information, the selected input and a range of control functions. The rotary control can be used to adjust volume and pause or resume playback.
The WiiM Home app provides access to the more advanced settings. It can be used to select music sources and streaming services, choose the active output, create multiroom groups and configure the volume, subwoofer, RoomFit room correction and equaliser.
The WiiM Ultra supports Spotify Connect, TIDAL Connect, Google Cast Audio, Roon Ready, DLNA and playback through the WiiM Home app. Services such as Spotify, TIDAL, Qobuz, Amazon Music and Deezer can be played directly or through the WiiM Home app, depending on the service and control device being used.
WiiM multiroom allows the Ultra to be grouped with other compatible WiiM products. It can also be integrated into compatible Google Home and Amazon Alexa multiroom systems. The WiiM Ultra does not support AirPlay or AirPlay 2.
HDMI ARC allows the WiiM Ultra to be connected directly to a compatible television. Audio from films, television programmes and games can then be reproduced through a stereo system or active speakers. The HDMI ARC input supports stereo PCM and Dolby Digital, but does not support DTS.
A dedicated subwoofer output makes it easy to add an active subwoofer. The associated settings can be adjusted through the WiiM Home app, allowing the subwoofer to be matched more closely to the main speakers and listening room.

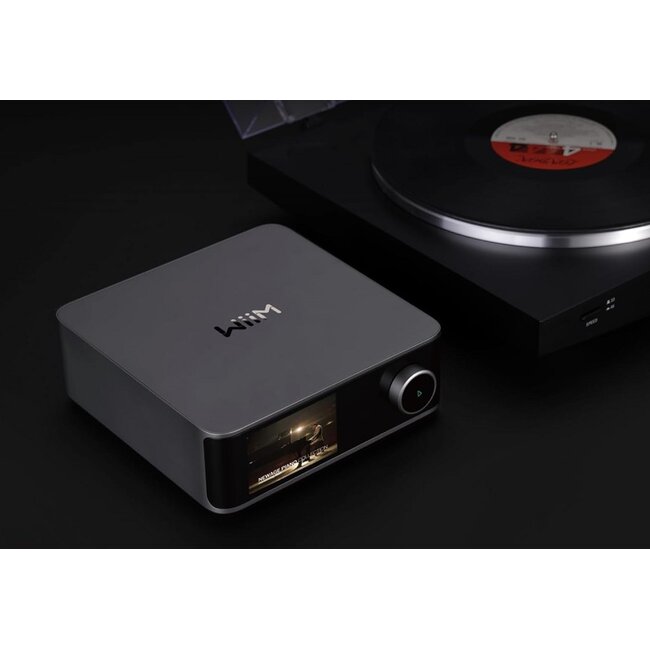

The built-in phono preamplifier allows a turntable without its own phono stage to be connected directly to the WiiM Ultra. Both MM and MC cartridges are supported, with gain settings of 41dB and 59dB respectively.
The analogue phono signal is converted internally at up to 24-bit/192kHz. This allows the turntable to be heard through the connected hi-fi system and, when required, distributed to compatible WiiM devices within a multiroom group.

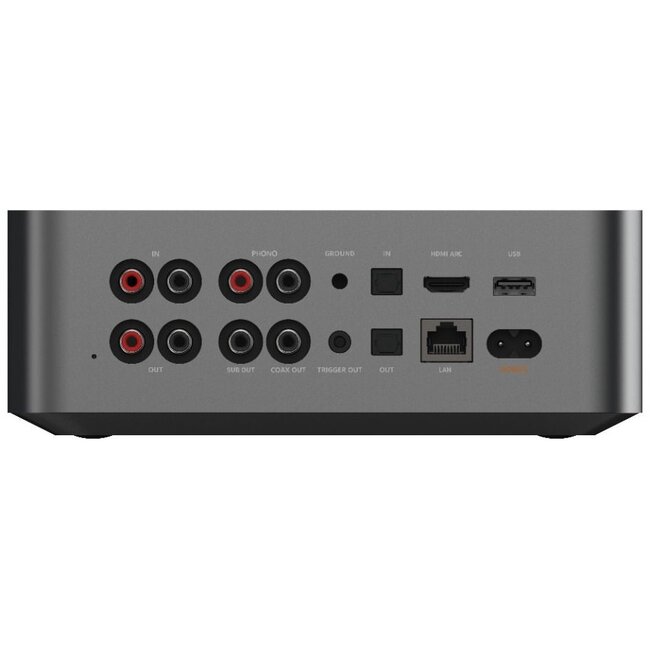

In addition to HDMI ARC and the phono input, the WiiM Ultra includes an analogue RCA line input, optical digital input, USB, Ethernet and Bluetooth. Outputs include RCA line out, optical, coaxial, USB audio, subwoofer, headphone and Bluetooth.
The USB connection can be used for an external music drive or as a USB audio output to a compatible external DAC. Supported file systems for USB storage include FAT32, NTFS and EXT4.
RoomFit can be used to adapt playback to the acoustic properties of the listening room. This can help compensate for reflections, standing waves and other room-related influences. The WiiM Home app also includes 24 EQ presets, a 10-band graphic equaliser and a 10-band parametric equaliser.
Equaliser settings can be stored separately for each input. This makes it possible to use different settings for streaming, television, a turntable and the optical input.
The WiiM Ultra is particularly suitable when you require a touchscreen, HDMI ARC, MM/MC phono input, USB audio, a headphone output and extensive connectivity. For a smaller and more affordable streamer to use with an existing amplifier, consider the WiiM Pro Plus with AKM DAC.
To connect passive speakers without a separate amplifier, the WiiM Amp Ultra streaming amplifier is the more suitable option. The WiiM Ultra itself does not contain a power amplifier for passive speakers.
No. The WiiM Ultra does not contain a power amplifier. Passive speakers require a separate amplifier. Active speakers can be connected to the adjustable RCA line output.
No. The WiiM Ultra does not support AirPlay or AirPlay 2. Alternatives include Google Cast Audio, Spotify Connect, TIDAL Connect, Bluetooth, DLNA, Roon and the WiiM Home app.
Yes. The built-in phono input supports both MM and MC cartridges, so a separate phono preamplifier is not required in many systems.
Yes. Television audio can be sent to the WiiM Ultra using HDMI ARC. Stereo PCM and Dolby Digital are supported, but DTS is not supported.
Yes. Its adjustable RCA line output allows the WiiM Ultra to operate as a streamer, DAC and digital preamplifier for active speakers.
| Brand | WiiM |
| Model | WiiM Ultra / ASR004 |
| Product type | Hi-res music streamer, DAC and digital preamplifier |
| Built-in power amplifier | No |
| DAC | ESS ES9038Q2M SABRE |
| Maximum audio resolution | 24-bit/192kHz |
| Analogue line output | Maximum 2.1V RMS |
| Line-output signal-to-noise ratio | 121dB, A-weighted |
| Line-output THD+N | 0.00018% / -115dB at 1kHz |
| Display | 3.5-inch colour touchscreen |
| Network | Wi-Fi 6 and Ethernet |
| Bluetooth | Two-way Bluetooth 5.3 |
| Streaming protocols | Google Cast Audio, Spotify Connect, TIDAL Connect, Roon Ready and DLNA |
| AirPlay 2 | No |
| Audio inputs | HDMI ARC, optical, RCA line in, MM/MC phono, USB storage and Bluetooth |
| Audio outputs | RCA line out, optical, coaxial, USB audio, subwoofer, headphone and Bluetooth |
| Phono input | MM 41dB / MC 59dB |
| HDMI ARC audio | Stereo PCM and Dolby Digital; no DTS |
| Equaliser | 24 presets, 10-band graphic EQ and 10-band parametric EQ |
| Room correction | RoomFit |
| USB storage | FAT32, NTFS and EXT4 |
| 12V trigger | 3.5mm, 12V/200mA |
| Dimensions | 211 × 200 × 72mm |
| Weight | 1.42kg |
| Power supply | 100–240V AC, 50/60Hz |
| Colours | Space Gray and Silver, depending on version |
