2M 78 Stylus

0 reviews - add your review
€85,00
Dispatched within: 2-5 working days
Hi-Stands webshop.
  • Fast shipping
    Same day Dispatched: If ordered before 17:00 on working days!
  • 14 days to change your mind
    We are only satisfied when you are.
  • Contact us via the mail
    And your question will be answered as soon as possible!
  • Affiliated with 2 quality marks
    Safe and trustworthy!
Description

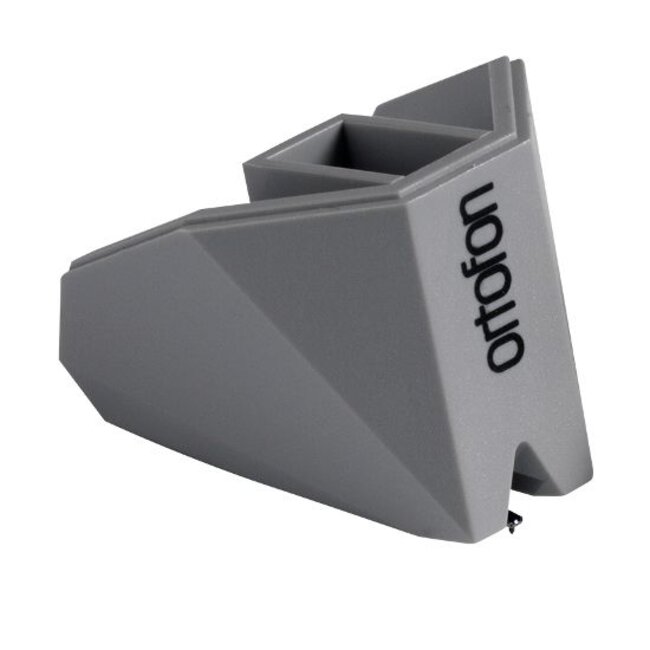

THE 2M 78 REPLACEMENT STYLUS IS A GENUINE REPLACEMENT PART FOR ORTOFON 2M 78 AND 2M 78 VERSO CARTRIDGES

TECHNICAL DATA:
Output voltage at 1000 Hz, 5cm/sec.: 4 mV
Frequency range at - 3dB: 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 18 µm/mN
Stylus type: Spherical
Stylus tip radius: R 65 µm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20º
Internal impedance, DC resistance: 700 Ohm
Internal inductance: 300 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Grey/Black
Replacement cartridge unit: 2M 78 / 2M 78 Verso
