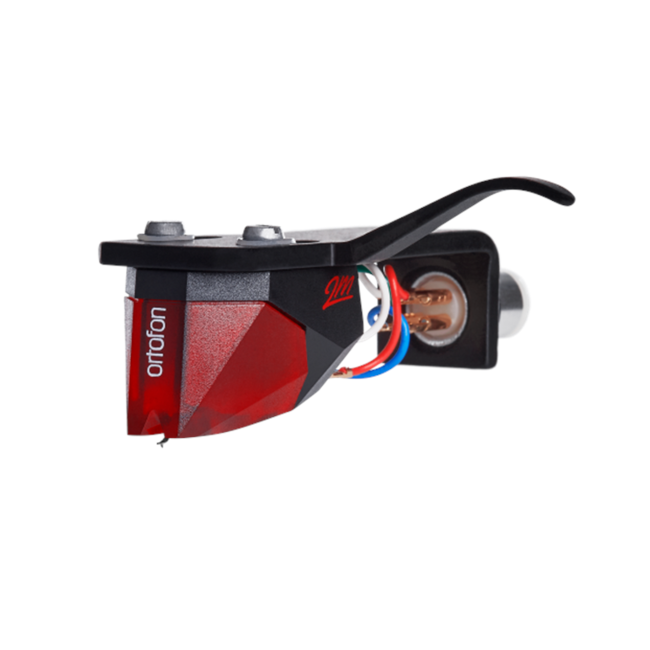

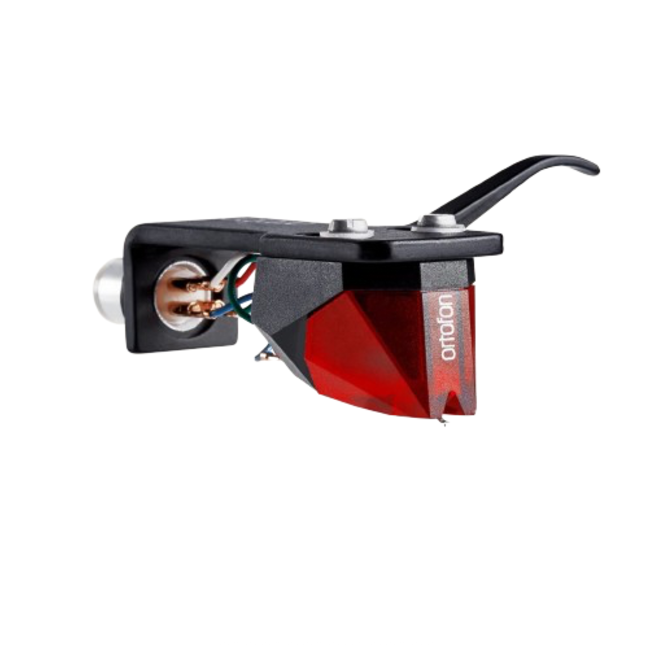

The Ortofon 2M Red comes pre-mounted on an SH-4 headshell for quick installation on S-shaped tonearms with a bayonet/SME connector. Open, dynamic sound with a touch of warmth. Read more.

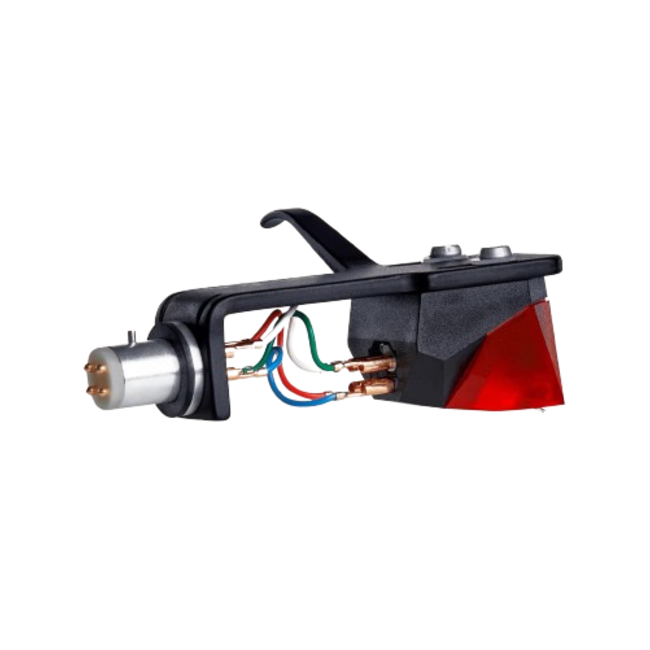

The Ortofon 2M Red Premounted combines the popular 2M Red moving-magnet cartridge with a pre-mounted Ortofon SH-4 headshell. It can therefore be fitted quickly to a suitable S-shaped tonearm with a bayonet/SME connector. Its elliptical diamond stylus tracks the record groove accurately, delivering an open and dynamic presentation with a pleasantly subtle warmth. It is an excellent choice when you want a convenient turntable upgrade without first having to mount a separate cartridge onto a headshell.
Discover all Ortofon products or compare our other turntable cartridges.
| Cartridge type | Moving Magnet (MM) |
| Mounting | Bayonet/SME, pre-mounted |
| Headshell | Ortofon SH-4 |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Cantilever | Aluminium |
| Output voltage at 1 kHz | 5.5 mV at 5 cm/s |
| Channel balance at 1 kHz | 1.5 dB |
| Channel separation at 1 kHz | 22 dB |
| Frequency response | 20 Hz - 20 kHz: +3/-1 dB |
| Tracking ability at 315 Hz | 70 µm |
| Dynamic compliance, lateral | 20 µm/mN |
| Tracking force range | 1.6-2.0 g (16-20 mN) |
| Recommended tracking force | 1.8 g (18 mN) |
| Tracking angle | 20° |
| Recommended load resistance | 47 kΩ |
| Recommended load capacitance | 150-300 pF |
| Internal impedance | 1.3 kΩ |
| Internal inductance | 700 mH |
| Coil wire | OFC copper |
| Cartridge body material | Polymer and aluminium |
| Colour | Black/Red |
| Cartridge weight | 7.2 g |
| Total pre-mounted weight | 16.7 g |
Before purchasing, check that your tonearm has a standard bayonet/SME connector and supports the total weight of 16.7 grams. An S-shaped tonearm alone does not guarantee compatibility. After fitting the headshell, balance the tonearm and set the tracking force to 1.8 grams. Set anti-skating according to your turntable manual and verify the overhang and cartridge alignment. Use the cartridge with a 47 kΩ MM phono input and a recommended total load capacitance of 150-300 pF.
