The Ortofon 2M Blue Premounted combines a detailed MM cartridge with an SH-4 headshell. Its Nude Elliptical stylus delivers greater openness, dynamics and resolution than the 2M Red. Read more.
The Ortofon 2M Blue Premounted is a high-quality Moving Magnet cartridge supplied pre-mounted on a black Ortofon SH-4 headshell. It is a convenient choice for turntables fitted with an S-shaped tonearm and a detachable SME or bayonet connection.
The key difference compared with the 2M Red is its Nude Elliptical diamond stylus. Because the diamond is mounted directly to the cantilever, it can follow the modulations in the record groove more accurately. This produces greater detail, improved dynamics, a more open stereo image and higher resolution.
With an output voltage of 5.5 mV, the 2M Blue works with virtually any conventional MM phono input. The recommended tracking force is 1.8 grams. After attaching the headshell, the tonearm must be rebalanced and the tracking force and anti-skating settings adjusted. Alignment and overhang should also be checked for optimum performance.
Explore more products from Ortofon and view our complete selection of MM and MC turntable cartridges.
| Cartridge type | Moving Magnet (MM) |
| Headshell | Ortofon SH-4, black |
| Mounting connection | Bayonet / SME |
| Stylus type | Nude Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Cantilever material | Aluminium |
| Output voltage | 5.5 mV at 1 kHz, 5 cm/s |
| Channel separation | 25 dB at 1 kHz |
| Channel balance | 1.5 dB at 1 kHz |
| Frequency response | 20 Hz – 20 kHz, +2/-1 dB |
| Tracking ability | 80 µm at 315 Hz |
| Dynamic compliance | 20 µm/mN, lateral |
| Tracking force range | 1.6–2.0 g (16–20 mN) |
| Recommended tracking force | 1.8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance | 1.3 kΩ |
| Internal inductance | 700 mH |
| Recommended load resistance | 47 kΩ |
| Recommended load capacitance | 150–300 pF |
| Coil wire | OFC copper |
| Cartridge body material | Polymer and aluminium |
| Colour | Black / blue |
| Cartridge weight | 7.2 g |
| Total premounted weight | 16.7 g |

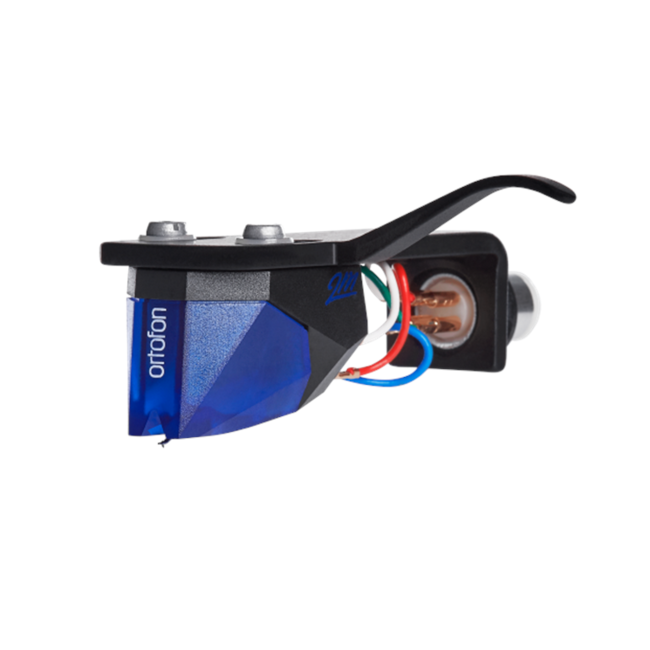

Ortofon 2M Blue MM cartridge, pre-mounted on a black Ortofon SH-4 headshell.
