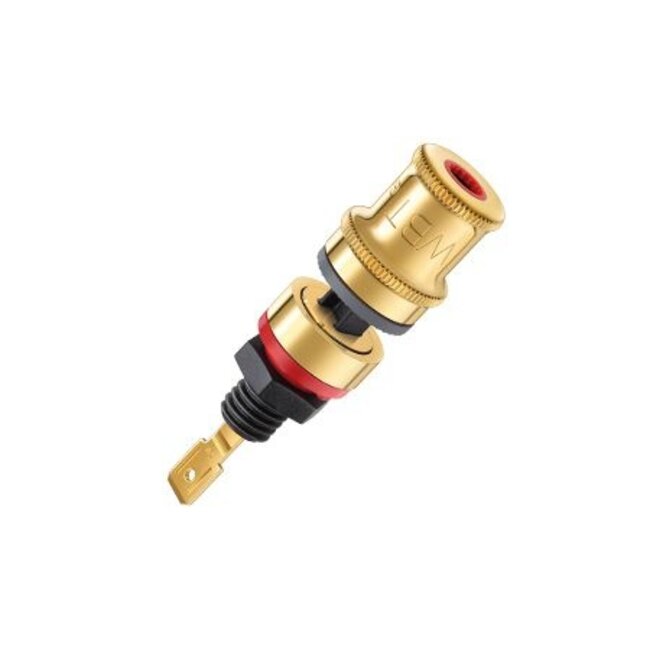

WBT 0710 Cu - set 4 pieces
Profile in brief: WBT-0710 Cu:
Product description:
nextgen™ – a new generation of connectors made by WBT
Virtues of WBT Plugs and Terminals:
undistorted and low-loss transmission of power and
the plug housing and mechanics are solid, reliable and safe (insulated).
The conventional "classic" connectors are almost always made of brass or brass
sheet. They certainly fulfill their duties, but not precisely enough.
– The solid connector housing inevitably acts as mass storage,
ie it creates a kind of “capacitor effect” and
– the larger and heavier the terminal, the greater the eddy current.
Both problems cause clearly audible distortions of a non-linear type and are known to be uncorrectable. Those who attach great importance to “high-end” will have to deal with solving this problem.
That's why WBT nextgen™ is different: brass is – independent of being
copper speed – first of all a universal material with ordinary functions, nextgen ™ consists of only functional materials:
For power/signal transfer, a pure soft copper is used – material that is excellent not only in electrical conductivity, but can also be precisely dosed with the right manufacturing process. The metal mass can be reduced by approx. 90%, but with the disadvantage of mechanical stability.
But there is also the power of the hybrid construction.
The high-tech plastic injection molding not only generates a plug body with its mechanics, but also stability of the “soft” signal conductors in a hybrid composition of highly specialized functional materials.
The result of the innovative construction is simply the ideal connector with a significant audible improvement in sound: WBT nextgen ™
External connection
The clever design of the signal conductor allows a secure termination of cable ends, banana plugs and curled cable ends.
Internal connection
Solder tabs that can be bent by hand if necessary. WBT recommends using silver solder WBT-0800/0805 which is gentle on precious surfaces.
Edit
Mounting insulators are included to ensure not only insulated, but also torsion-resistant mounting and polarity identification of the terminals.
In the case of hi-fi devices that are highly exposed to impact noise, such as loudspeakers, it is recommended to use an additional nut lock nut, which is the fluid screw retention LOCTITE 4804.
It is coupled with WBT high-tech plastic and can be removed. In addition, WBT recommends using the WBT-0718.
* WBT-0710 is also available in silver
nextgen™ is the development of WBT and is internationally patent pending
To avoid misunderstandings: sound improvement by the nextgen ™ principle arises by omitting signal distortions (mass storage / eddy current) generated by the most conventional connectors.
Explanations:
Tip for equipment manufacturers
Due to the valid safety regulations, the 4mm banana holes of WBT pole clamps
used in the field of audio / video in the territory of the EU, must be concluded with the security stick WBT-0799.
Specifications:
Core cross section (max.): Outside: 10 mm² (7 AWG)
inside: 4 mm² (11 AWG)
Connection technology: outside: 4 mm banana plug, spades (6-8 mm spade), crimping
inside: solder or 6.3 mm flat push-on cable lug
Wall thickness: from 0.9 to 6.5 mm (from 4.5 mm without puzzle plate)
