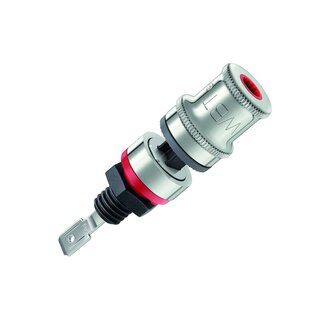

Set of four premium WBT 0710 Ag nextgen™ speaker terminals featuring fine-silver signal conductors, low metal mass and a fully insulated construction. Read more.

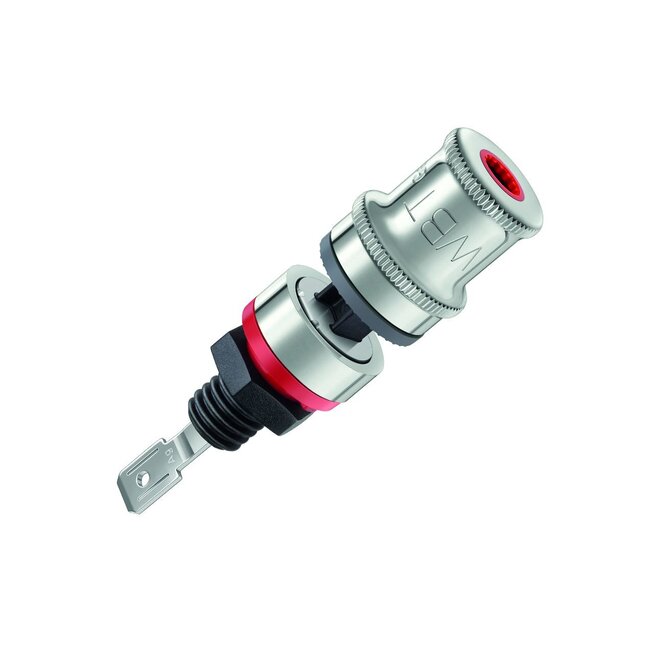

The WBT 0710 Ag nextgen™ is a premium speaker terminal for audiophiles, loudspeaker builders and manufacturers who refuse to compromise on signal transmission. This version comes as a set of four terminals and features a signal conductor made from pure fine silver.
Unlike conventional solid-metal binding posts, the WBT nextgen™ design uses metal only where it is electrically necessary. Its substantially reduced metal mass minimises eddy-current effects and unwanted energy storage, enabling exceptionally pure and low-loss transmission of the audio signal.
The signal-carrying contact of the WBT-0710 Ag is manufactured from fine silver. Mechanical loads are handled by carefully selected functional materials. This allows WBT to combine outstanding electrical conductivity with a stable, safe and fully insulated construction.
On the outside, the terminal accepts 4 mm banana plugs, spade connectors and crimped cable ends up to 6 mm². The internal connection can be soldered or connected using a flat push-on terminal. The WBT-0710 Ag is designed for installation in a loudspeaker cabinet wall.
The WBT 0710 Ag is an excellent choice for premium loudspeakers, custom builds and upgrades where contact quality and transparent signal transmission are essential. Its combination of fine silver, low metal mass and sophisticated mechanical engineering makes it ideally suited to ambitious high-end audio systems.
| Product type | nextgen™ speaker terminal |
| Application | Loudspeaker cabinet-wall mounting |
| Signal conductor | Fine silver |
| External connection | 4 mm banana plug, spade or crimped cable end |
| Maximum cable size | 6 mm² / 11 AWG |
| Internal connection | Soldering or flat push-on terminal |
| Continuous current | Maximum 30 A |
| Peak current | Maximum 200 A |
| Construction | Fully insulated with vibration control |
| Compliance | CE, IEC and RoHS |
| Package contents | 4 speaker terminals |
Discover more premium connectors and accessories from WBT at Hi-Stands.
