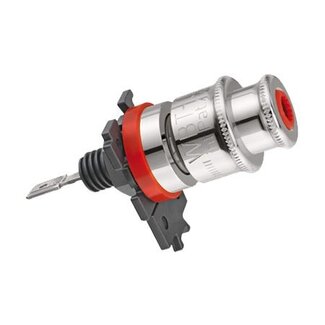

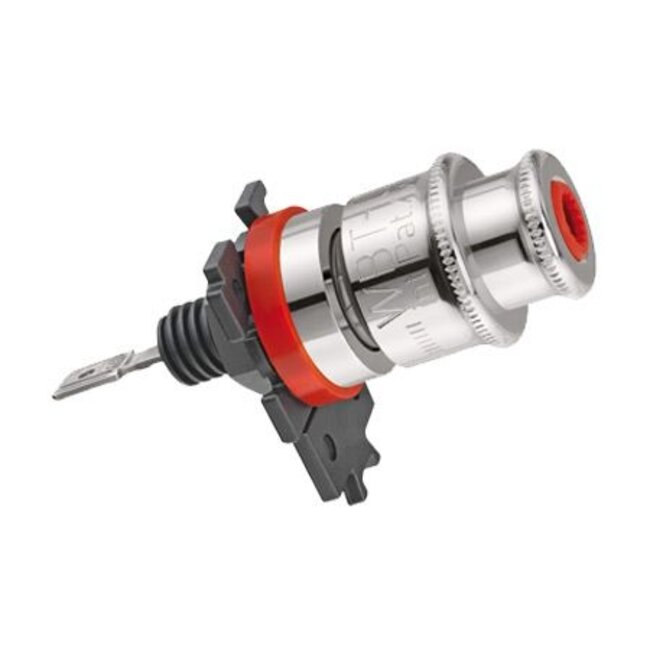

Set of four WBT 0705 Ag Nextgen™ binding posts with fine-silver signal conductors, nickel-free gold plating and connections for banana plugs, spades and crimped cable ends. Read more.
The WBT 0705 Ag Nextgen™ is a premium binding post developed for uncompromising high-end audio systems. Its signal conductor is made from fine silver and protected by nickel-free direct gold plating. This set contains four terminals and is ideal for building or upgrading one pair of loudspeakers.
The low-mass Nextgen™ design reduces eddy currents and unwanted mass-storage effects within the contact material. This allows the audio signal to be transferred accurately and with minimal loss. Its mechanically strong hybrid construction combines a fine-silver conductor with high-quality electrically insulating materials.
The WBT 0705 Ag accepts 4 mm banana plugs, spade connectors with a width of 6 to 8 mm and crimped cable ends. Internally, the cable can be soldered or connected with a 6.3 mm flat push-on connector. The insulating components support insulated and twist-resistant installation.
| Product type | Nextgen™ binding post |
| Contents | Set of 4 |
| Signal conductor | Fine silver |
| Surface protection | Nickel-free direct gold plating |
| Maximum continuous current | 30 A |
| Permissible peak current | 200 A |
| Maximum conductor cross-section | 4 mm² / 11 AWG |
| External connection | 4 mm banana plug, 6–8 mm spade or crimp connection |
| Internal connection | Soldering or 6.3 mm flat push-on connector |
| Suitable wall thickness | 0.9–10.0 mm; with puzzle plate 0.9–8.0 mm |
| Country of manufacture | Germany |
The WBT 0705 Ag is intended for demanding loudspeaker designers, manufacturers and music enthusiasts who pay close attention to every component in the signal path. Discover our other WBT connectors and audio terminals.
