WBT 0210 Cu Nextgen

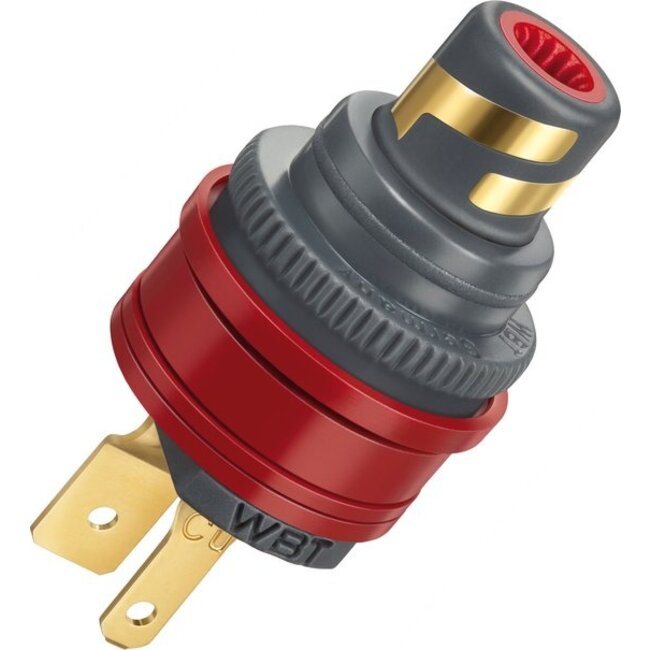

The WBT-0210 Cu RCA connector is a high-quality audio jack with impressive features:

• 75 Ohm Impedance: This connector has a characteristic impedance of 75 ohms, allowing it to transmit excellent analog and digital audio and video signals, with an impressive bandwidth of 1 GHz.

• No Distortion: The design minimizes the formation of eddy currents, which is crucial for transmitting distortion-free signals.

• High-Quality Material: The contact elements are made of pure copper, one of the best electrical conductors, and are coated with a gold finish to prevent oxidation and maintain contact quality.

• Active Spring Contact: The inner contact features an active spring contact with a three-segment tulip design, providing reliable contact even with non-standard RCA plugs and resisting repeated plugging and unplugging.

• Double Wave Contact: The outer contact has the shape of a double wave and surrounds a robust Ultramid* element. This shape ensures reliable contact with any RCA plug and minimizes the formation of eddy currents for distortion-free signal transmission.

• Easy Installation: The connector comes with mounting isolators for insulation, twist-resistant installation, and polarity identification. Nuts and double-step sealing rings with lips are included. The nut of the WBT-0210 Cu is made of brass with a gold finish.

In summary, the WBT-0210 RCA connector is ideal for high-quality audio connectivity, offering impressive performance and durability with minimal distortion and maximum signal quality.
