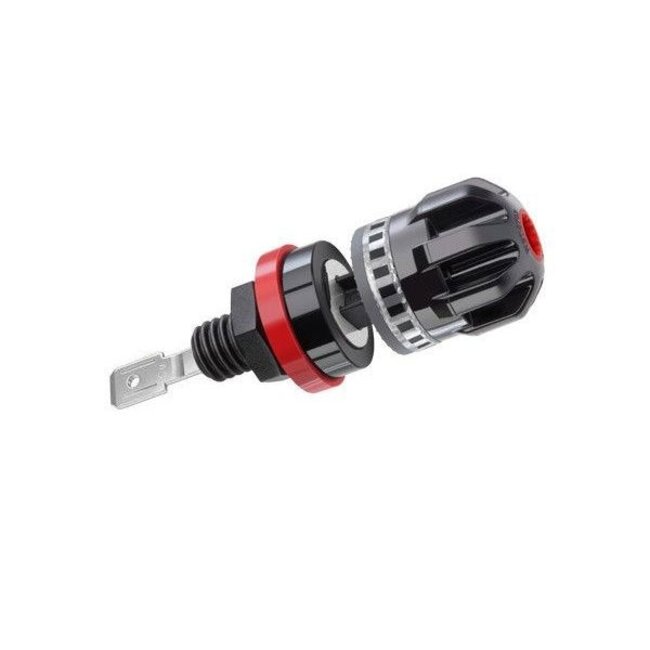

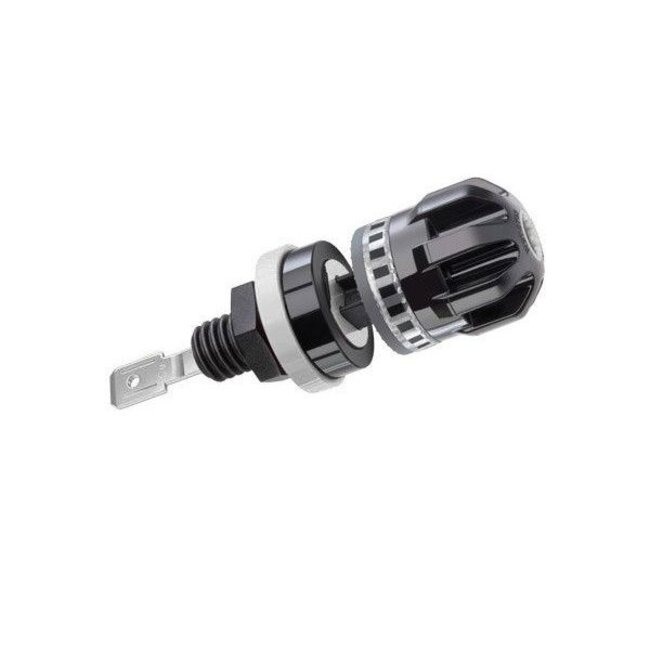

The WBT 0703 Ag NextGen is a premium pole terminal with a fine-silver signal conductor. Suitable for 4 mm banana plugs, spades and crimped cable ends. Supplied individually. Read more.
The WBT 0703 Ag NextGen is a premium pole terminal developed for demanding music enthusiasts, loudspeaker builders and audio manufacturers. Its one-piece signal conductor is made from fine silver, combining outstanding conductivity with an exceptionally low metal mass.
WBT's proven NextGen principle minimises undesirable mass-storage effects and effectively prevents eddy-current distortion. A carefully selected combination of functional materials also controls electrical and mechanical vibrations. This makes the WBT-0703 Ag an excellent choice for premium loudspeakers, amplifiers and ambitious DIY audio projects.
The WBT 0703 Ag accepts 4 mm banana plugs, spades with a 6 to 8 mm opening and crimped cable ends on the outside. The internal connection can be soldered or made with a 6.3 mm flat push-on connector.
Integrated torque control indicates when sufficient contact pressure has been reached. This helps prevent overtightening and protects both the terminal and the connected spade. A locking feature maintains the selected contact pressure.
| Product type | NextGen pole terminal / speaker binding post |
| Signal conductor | Fine silver |
| External connection | 4 mm banana plug, 6–8 mm spade or crimped cable end |
| Internal connection | Soldering or 6.3 mm flat push-on connector |
| Maximum conductor size | 4 mm² / 11 AWG, internally and externally |
| Maximum continuous current | 30 A |
| Permissible peak current | 200 A |
| Suitable wall thickness | 0.9–10 mm |

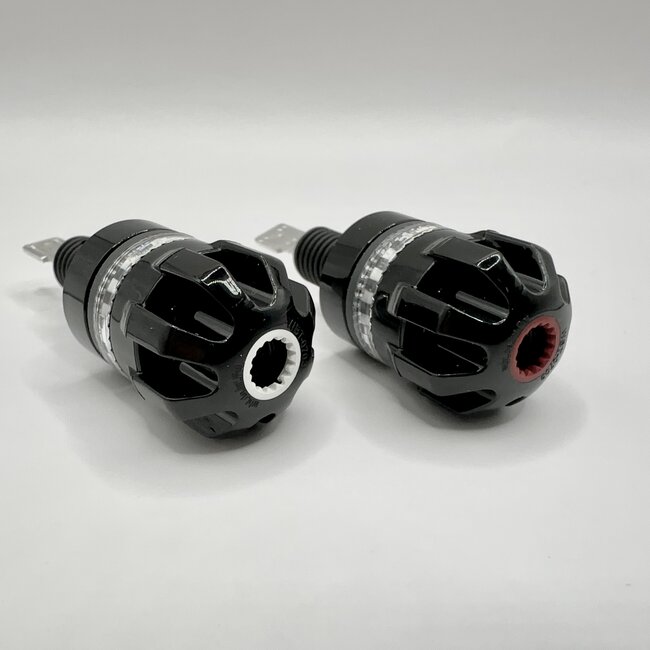

| Identification | Red, white or black, depending on the selected version |
| Supplied | Individually |
The WBT-0703 Ag delivers the essential benefits of WBT's NextGen technology in a compact, purpose-designed terminal. Its fine-silver conductor, low contact resistance and controlled contact pressure make it particularly suitable for premium crossover networks, loudspeaker cabinets and amplifier outputs.
Explore our complete selection of WBT connectors and audio components to create a consistently high-quality signal path.
