The Volumio Rivo Plus is a high-end digital streaming transport with I²S, USB, AES/EBU and coaxial outputs, engineered for a precise low-jitter connection to an external DAC. Read more.
The Volumio Rivo Plus, also known as the Rivo+, is designed for listeners who want to feed their external DAC with the cleanest and most accurate digital signal possible. This enhanced version of the award-winning Rivo features a dedicated ASIC for S/PDIF and AES/EBU, upgraded MEMS clocks and I²S/DSD over HDMI. It is an excellent digital source for a high-performance streaming audio system.
Discover all Volumio products.
One of the major upgrades over the original Rivo is the dedicated ASIC responsible for generating the coaxial S/PDIF and AES/EBU signals. This allows the main processor to be relieved of this critical task. Combined with high-quality MEMS clocks and low-noise voltage regulators, the digital output circuitry is engineered for excellent signal integrity.
Rivo Plus also includes I²S/DSD over HDMI. With a compatible DAC this enables a direct I²S connection. As HDMI-I²S pin configurations can vary between DAC manufacturers, compatibility should always be checked before using this connection.
| Product type | Digital streaming transport / network player |
| Coaxial S/PDIF | Up to PCM 192 kHz/24-bit and DSD64 via DoP |
| AES/EBU | Up to PCM 192 kHz/24-bit and DSD64 via DoP |
| I²S/DSD over HDMI | Up to PCM 768 kHz/32-bit and DSD256 |
| USB DAC output | Up to PCM 768 kHz/32-bit and DSD256 |

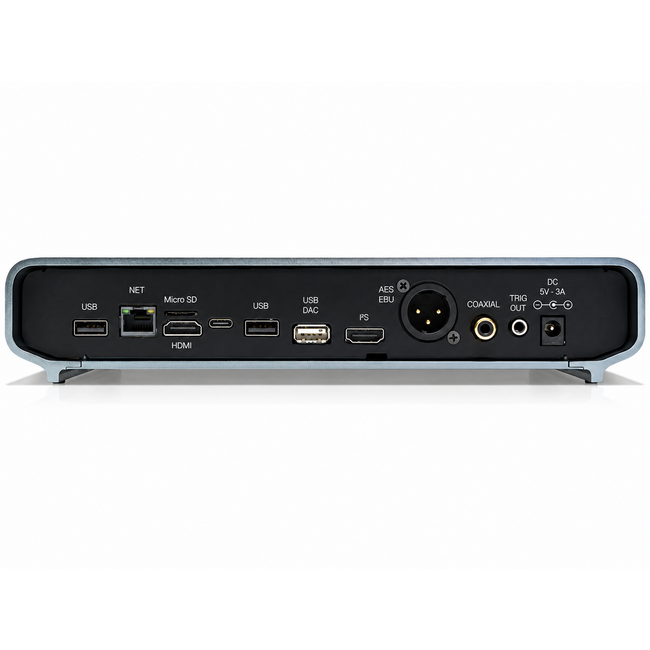

| USB | 1× USB 3.0, 1× USB 2.0 and 1× USB 2.0 DAC port |
| LAN | Gigabit Ethernet 10/100/1000 Mbps |
| Wi-Fi | 802.11a/b/g/n/ac, 2×2 MIMO with RSDB |
| Bluetooth | Bluetooth 5.0 |
| Supported formats | DSD, WAV, FLAC, ALAC, AAC, Vorbis, MP3 and more |
| Streaming services | Spotify Connect, TIDAL Connect, Qobuz and AirPlay |
| UPnP/DLNA | Renderer with OpenHome support |
| Roon | Roon Ready |
| CPU | Amlogic S905D3 Quad Core, 1.9 GHz |
| RAM | 2 GB DDR4 |
| Internal storage | 16 GB eMMC |
| Power supply | 5 V / 3 A |
| Dimensions | 270 × 150 × 50 mm |
| Weight | 2.25 kg |
The Volumio Rivo Plus is particularly suitable for high-quality hi-fi systems that already use a separate DAC. The Rivo Plus does not contain an analogue audio output; it connects digitally to your DAC by USB, coaxial S/PDIF, AES/EBU or I²S over HDMI.
If your DAC offers several digital inputs, comparing the different connections in your own system can be worthwhile. When using I²S, always check that the HDMI-I²S pin configuration of your DAC is compatible with the Rivo Plus.
