Furutech CF-602F NCF (R) female XLR connector with silver carbon fiber finish for premium balanced audio cable builds. Read more.

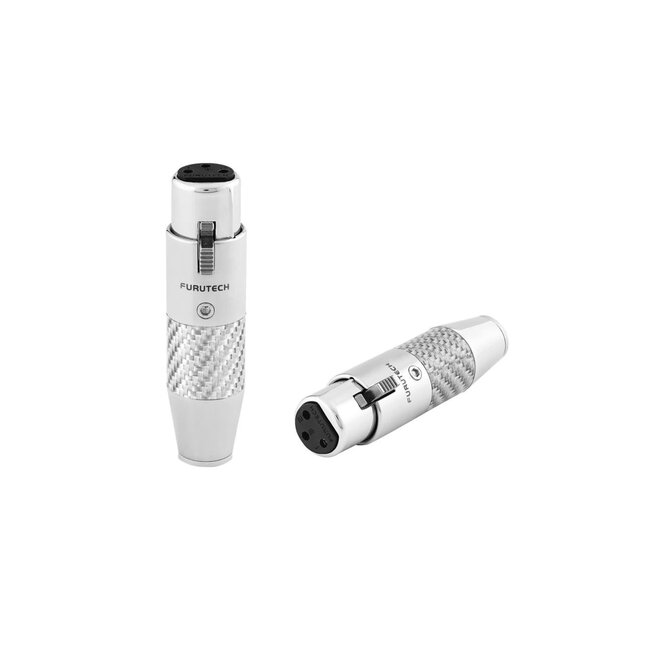

The Furutech CF-602F NCF (R) is a premium female XLR connector engineered for uncompromising balanced audio cables. This flagship Furutech design combines rhodium-plated α (Alpha) pure copper conductors with proprietary Nano Crystal² Formula (NCF) technology, a sophisticated carbon-fibre housing and robust mechanical construction.
It is an excellent choice for premium XLR interconnects connecting DACs, streamers, CD players, preamplifiers, power amplifiers, headphone amplifiers, active loudspeakers and professional audio interfaces. For audiophiles and specialist cable builders who pay close attention to every connection within the signal path, the CF-602F NCF (R) represents one of Furutech's most advanced female XLR solutions.
The signal contacts use one-piece α (Alpha) Pure Copper conductors finished with rhodium plating. Furutech treats its metal components using its Alpha Process, combining deep cryogenic treatment with demagnetisation.
The design is intended to provide stable electrical contact and reliable signal transmission in high-quality balanced audio cables.
A major feature of the CF-602F NCF (R) is Furutech's proprietary Nano Crystal² Formula. The contact body uses a heat-resistant Liquid Crystal Polymer Resin containing nylon, fibreglass, nano-sized crystalline piezoelectric ceramic particles, carbon powder and Furutech's dedicated NCF damping material.
According to Furutech, NCF is designed to address both static charge and mechanical resonance. Special NCF damping clips are also integrated into the connector, extending resonance-control measures throughout the construction.
The connector uses a sophisticated multilayer hybrid NCF carbon construction featuring silver-plated 3K carbon fibre and non-magnetic stainless steel. The combination provides the CF-602F NCF (R) with its distinctive premium appearance while contributing to mechanical stability and damping.
The conductors can be terminated using either set screws or soldering, giving professional cable builders flexibility when assembling a premium balanced interconnect.
The connector accepts cables with an outside diameter of up to 10.0 mm. Furutech specifies up to 13 AWG / 2.62 mm² stranded conductors or 12 AWG / 3.3 mm² solid-core conductors.
Furutech is a Japanese manufacturer internationally recognised for premium audio connectors, cables, power products and accessories. The company combines carefully selected conductor materials with technologies including its Alpha Process and Nano Crystal² Formula. Furutech products are widely used in high-performance audio systems where contact quality, mechanical construction and signal integrity are important.
Explore our other audio connectors for building or upgrading premium audio cables.
| Brand | Furutech |
| Model | CF-602F NCF (R) |
| Type | Female XLR connector |
| Conductor material | One-piece α (Alpha) pure copper |
| Plating | Rhodium |
| Technology | Nano Crystal² Formula (NCF) |
| Housing | Multilayer hybrid NCF carbon construction with silver-plated 3K carbon fibre and non-magnetic stainless steel |
| Termination | Set screw or solder |
| Maximum cable diameter | 10.0 mm |
| Max. stranded wire | 13 AWG / 2.62 mm² |
| Max. solid-core wire | 12 AWG / 3.3 mm² |
| Dimensions | Ø 18.6 × approx. 70.85 mm |
| Net weight | Approx. 58.2 g |
