High-performance Furutech female XLR connector with carbon fiber finish for balanced hi-fi cables and custom audio cable upgrades. Read more.

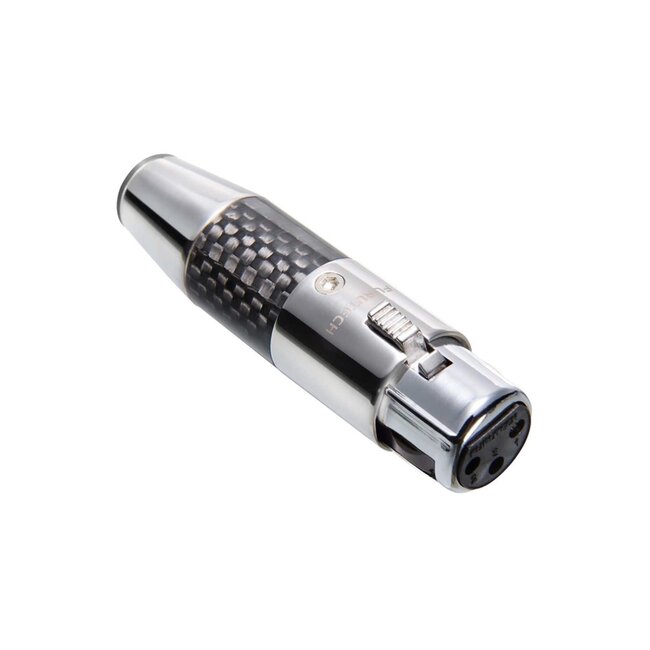

The Furutech CF-602F-N1(R) is a high-performance female XLR connector designed for building or upgrading premium balanced audio cables. Furutech combines rhodium-plated α (Alpha) conductors with a robust carbon-fiber and nonmagnetic stainless-steel housing, making the CF-602F-N1(R) particularly suitable for demanding hi-fi systems, high-end audio installations and professional audio applications.
Every connector forms an important physical contact point in a balanced signal path. Furutech therefore pays close attention not only to conductor materials, but also to insulation, mechanical stability, strain relief and reliable cable assembly.
The conductive parts of the CF-602F-N1(R) are manufactured from α (Alpha) beryllium copper and phosphor bronze and finished with rhodium plating. This combination is designed to provide a stable and durable electrical connection in premium balanced audio cables.
Rhodium also provides a hard, wear-resistant contact surface with excellent resistance to corrosion, making it particularly attractive for high-quality interconnects intended for long-term use.
The housing combines carbon fiber and nonmagnetic stainless steel. This construction gives the CF-602F-N1(R) its distinctive high-end appearance while providing a solid mechanical structure for carefully assembled audio cables.
Furutech uses PVDF fluoropolymer for the insulating body, ensuring that material quality extends beyond the conductive contacts to the internal construction of the connector.
The CF-602F-N1(R) uses a soldered cable connection, allowing an experienced cable builder to create a precise and mechanically secure electrical connection. A specially designed internal cable strain relief helps reduce mechanical stress on the solder joints.
The standard version accepts cables with an outside diameter of up to 10.0 mm, making it compatible with a wide range of premium balanced interconnect cables.
The Furutech CF-602F-N1(R) is an excellent choice for assembling a premium balanced XLR interconnect or upgrading an existing cable. Typical applications include connections between:
For the best long-term result, we recommend combining the connector with a high-quality compatible cable and carrying out the soldering and strain relief carefully.
Furutech is a Japanese specialist in premium audio connectors, cables, power products and accessories. Its Pure Transmission philosophy places strong emphasis on material selection, contact quality and precision engineering throughout the signal and power path.
By combining Japanese precision, carefully selected materials and continuous product development, Furutech has become a recognised name among discerning music lovers, custom cable builders and high-end audio enthusiasts worldwide.
| Brand | Furutech |
| Model | CF-602F-N1(R) |
| Type | Female XLR connector |
| Conductors | α (Alpha) beryllium copper and phosphor bronze |
| Contact finish | Rhodium plated |
| Housing | Carbon fiber and nonmagnetic stainless steel |
| Insulation | PVDF fluoropolymer |
| Connection | Soldered |
| Strain relief | Integrated internal cable strain relief |
| Maximum cable diameter | 10.0 mm |
| Dimensions | Ø 18.6 ± 0.1 mm × 77.4 ± 0.1 mm |
| Package | 1 piece |
