Set of four WBT 0730.12 Signature binding posts with nickel-free platinum plating, high contact pressure and connections for 4 mm banana plugs, spades and crimped cables. Read more.

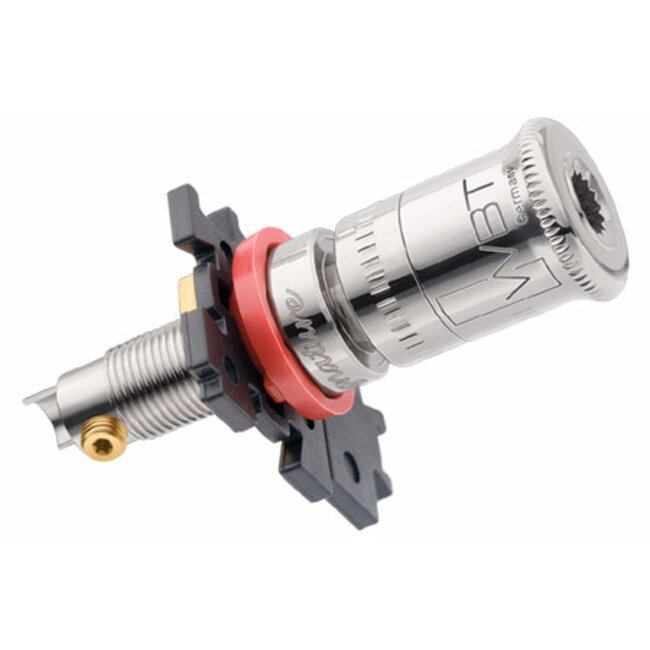

The WBT 0730.12 Signature is a premium binding post developed for loudspeakers, amplifiers and demanding audio projects. This package contains a set of four binding posts with a polished, directly platinum-plated and nickel-free finish.
Its patented two-piece clamping nut incorporates a freely rotating pressure element with a cross-milled contact surface. This construction generates high and evenly distributed contact pressure, producing a durable connection with an exceptionally low contact resistance.
The external connection accepts 4 mm banana plugs, spade connectors with a 6 or 8 mm fork opening and crimped cable ends up to 6 mm². The freely rotating pressure element helps prevent the spade from turning while tightening and protects exposed cable strands against damage.
The internal connection accommodates cables up to 10 mm². Cables can be crimped or soldered and securely fixed using the Torx screw. WBT recommends crimping for a reliable and consistently reproducible connection.
The polished platinum-plated surface provides excellent corrosion resistance and creates a robust, abrasion-resistant finish. Its brilliant appearance also makes the WBT 0730.12 suitable for visually refined loudspeaker and amplifier designs. The maximum continuous current rating is 70 A.
| Product type | Signature binding posts |
| Package contents | Set of 4 |
| Finish | Polished, directly platinum-plated and nickel-free |
| External connection | 4 mm banana plug, spade or crimp connection |
| Spade size | 6 or 8 mm fork opening |
| Maximum external cable size | 6 mm² |
| Maximum internal cable size | 10 mm² |
| Internal connection | Crimping or soldering with Torx fixation |
| Panel thickness | 0.1–6 mm |
| Maximum continuous current | 70 A |
| Polarity identification | Red and white |
