Powerful Class-D stereo amplifier with 100W per channel at 8Ω, ESS ES9039Q2M DAC, PFFB technology and 24-bit/192kHz digital inputs. Read more.

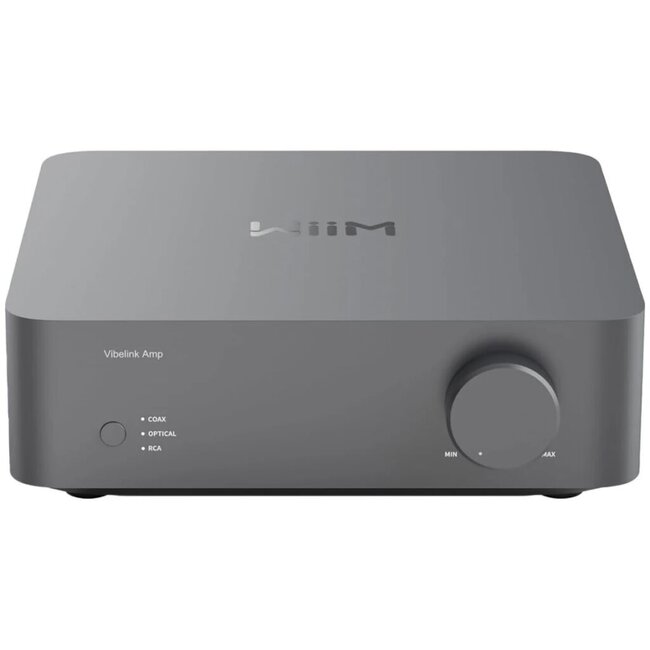

The WiiM Vibelink Amp is designed for music lovers who want to combine a separate music streamer with a powerful, high-quality stereo amplifier. Delivering up to 100 watts per channel into 8 ohms and 200 watts per channel into 4 ohms, it can confidently drive a wide range of passive loudspeakers. Its TI TPA3255 Class-D amplifier, PFFB technology and ESS ES9039Q2M DAC provide precise, dynamic and low-noise reproduction.
Discover all WiiM products.
The Vibelink Amp pairs particularly well with the WiiM Mini, WiiM Pro, WiiM Pro Plus and WiiM Ultra. Your streamer handles music streaming and control while the Vibelink Amp concentrates entirely on driving your passive loudspeakers.
Post-Filter Feedback helps compensate for variations caused by different loudspeaker loads. This allows the amplifier to maintain a more consistent frequency response across different speaker impedances while further reducing distortion.

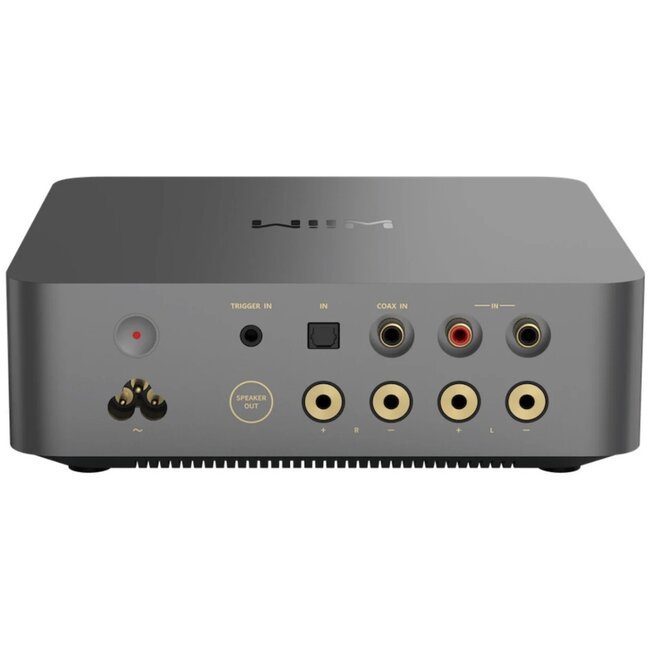

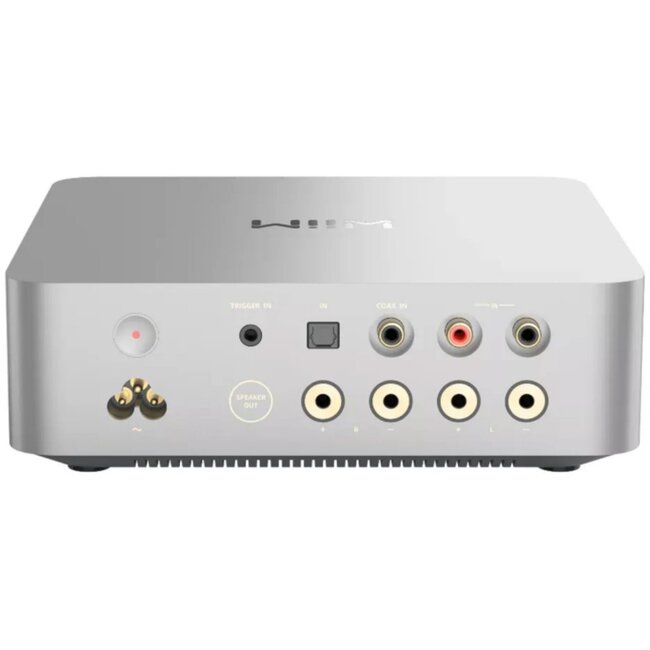

The optical and coaxial inputs feed the high-performance ESS ES9039Q2M DAC and support stereo PCM signals at up to 192kHz / 24-bit.
Dolby Digital and DTS are not supported, so connected digital sources must be configured to output stereo PCM.
The RCA input remains entirely analogue and does not use analogue-to-digital conversion. This makes the Vibelink Amp an excellent partner for an external DAC, CD player or analogue preamplifier.
| Type | Stereo Class-D amplifier |
| Amplifier | TI TPA3255 |
| Technology | Class-D with PFFB |
| Digital input power - 8Ω | 2 × 100W |
| Digital input power - 4Ω | 2 × 200W |
| RCA input power - 8Ω | 2 × 60W |
| RCA input power - 4Ω | 2 × 120W |
| Speaker impedance | 3-8Ω |
| DAC | ESS ES9039Q2M |
| Maximum digital resolution | 192kHz / 24-bit PCM |
| SNR | ≥120dB |
| THD+N | ≤0.0005% |
| Frequency response | 20Hz-20kHz ±0.5dB |
| Analogue input | 1 × stereo RCA |
| Digital inputs | 1 × optical TOSLINK, 1 × coaxial S/PDIF |
| 12V trigger | Yes, 3.5mm input |
| Cooling | Passive, fanless |
| Dimensions | 200 × 212.5 × 66mm |
| Weight | 2.05kg |
The WiiM Vibelink Amp is ideal when you already own a capable streamer and need a high-quality power amplifier for passive loudspeakers. Combined with a WiiM Ultra, for example, it creates a flexible Hi-Fi system in which streaming and amplification are handled by separate components.
Please note that the Vibelink Amp itself does not include network streaming, Wi-Fi, Bluetooth, HDMI ARC or a phono preamplifier. A turntable without a built-in phono stage therefore requires a separate phono preamplifier.
