Review VM-520EB Cartridge

VM-520EB Cartridge

0 reviews - add your review
€119,00
Dual Moving Magnet Stereo Cartridge with Elliptical stylus
Same day Dispatched: If ordered before 17:00 on working days!
Hi-Stands webshop.
  • Fast shipping
    Same day Dispatched: If ordered before 17:00 on working days!
  • 14 days to change your mind
    We are only satisfied when you are.
  • Contact us via the mail
    And your question will be answered as soon as possible!
  • Affiliated with 2 quality marks
    Safe and trustworthy!
Description

Audio Technica AT-520EB Cartridge

Dual Moving Magnet Stereo Cartridge

Standard elliptical stylus model equipped with an elliptical bonded stylus. This reduces tracing distortion and allows for more accurate sound reproduction.

  • Aluminium cantilever
  • Para-toroidal coils improve generating efficiency
  • Centre shield plate between the left and right channels reduces crosstalk
  • Durable low resonance polymer housing

Audio-Technica’s internationally-patented Dual Magnet design replicates the structure of the cutter head.

Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal generating system

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Centre shield plate reduces crosstalk

A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

500 Series

Standard cartridge body fitted with the para-toroidal coils, centre shield plate, and 6N-OFC coil wire which is the same as 700 series.

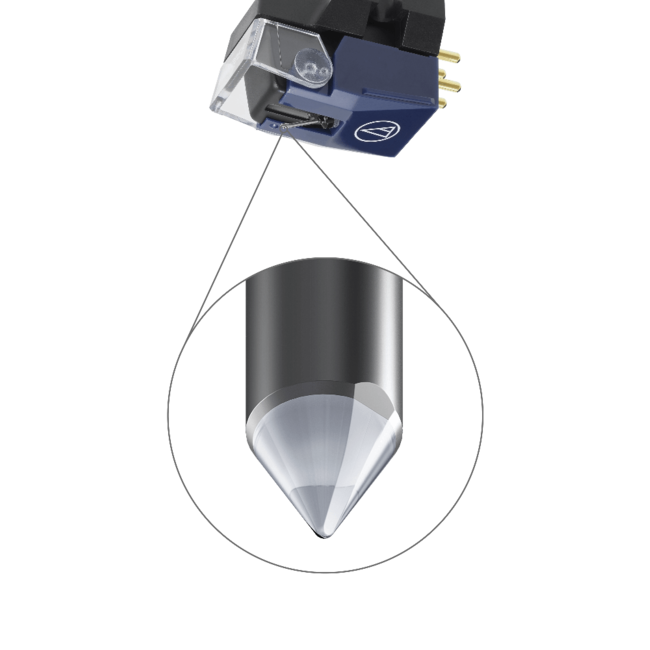

Elliptical Bonded Stylus

Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.
