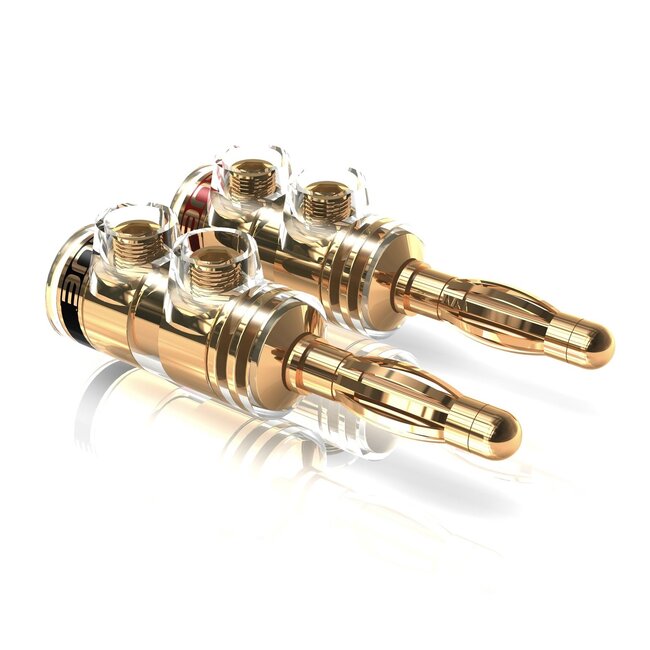

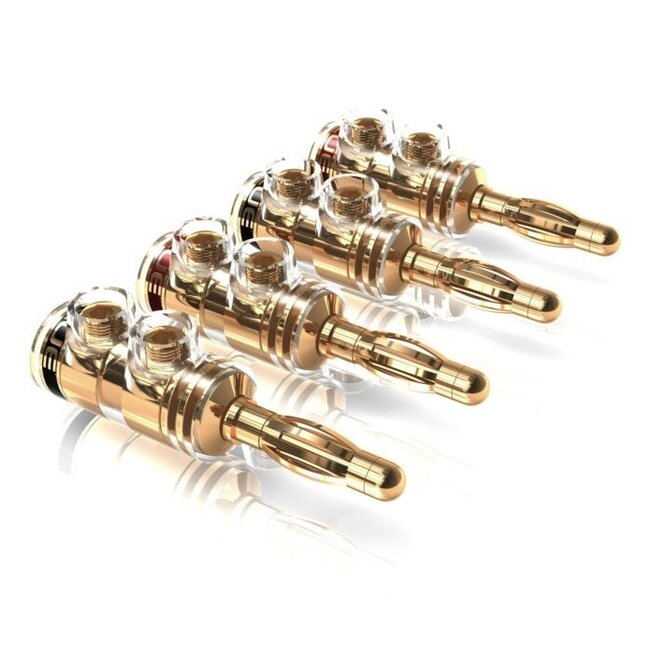

ViaBlue TS Banana Plugs Lamella: Innovative and Secure Connections for Frequent Use

The ViaBlue TS Banana Plugs Lamella are the ideal choice for audiophiles seeking a reliable and flexible solution for their audio setup. With a thoughtful design and high-quality materials, these plugs offer convenience, durability, and excellent sound quality. Below, you'll find the key features, benefits, and technical specifications.

Features and Benefits

The ViaBlue TS Banana Plugs Lamella combine innovation with user-friendliness. Key features include:

• Easy Assembly Without Soldering: Thanks to two M4 hexagon socket screws (1.5 mm), assembly is quick and straightforward – no soldering required.
• Lamella Technology: The classic lamella design ensures a stable and secure connection, even with frequent plugging and unplugging.
• 24-Carat Gold Plating: The contacts are plated with genuine 24-carat gold, ensuring excellent signal transmission and corrosion resistance.
• Short-Circuit Protection: The transparent insulating shell reliably protects against short circuits and enhances safety.
• For Cables up to Ø 5 mm: These plugs are versatile and suitable for a wide range of audio cables.

Recommended Accessory: VIABLUE™ OFC Crimp Sleeves

To prevent cable breakage and kinks, we recommend using VIABLUE™ OFC crimp sleeves. These sleeves protect the cable strands and extend the lifespan of your installation.

Simple Assembly

The ViaBlue TS Banana Plugs Lamella are quick and easy to assemble:

1. Strip the cable ends and secure them with the two M4 hexagon socket screws (1.5 mm).
2. Insert the cable into the plug and ensure a firm fit.
3. Optionally, use crimp sleeves for added protection and a professional finish.

Thanks to the intuitive assembly process, these plugs are perfect for both beginners and experienced audio enthusiasts.

Technical Specifications

• Width: 11 mm
• Height: 14 mm
• Shell Length: 25.5 mm
• Contact Length: 16 mm
• Contacts: Nine segmented lamella contacts
• Maximum Cable Diameter: Ø 5.5 mm
• Cable Assembly: Two M4 hexagon socket screws (1.5 mm)

Why Choose ViaBlue TS Banana Plugs Lamella?

With innovative lamella technology, solder-free assembly, and robust design, the ViaBlue TS Banana Plugs Lamella are the perfect choice for anyone needing frequent connections and disconnections without compromising reliability. Combined with high-quality materials and safety features, these plugs offer the perfect balance of functionality and sound quality.
