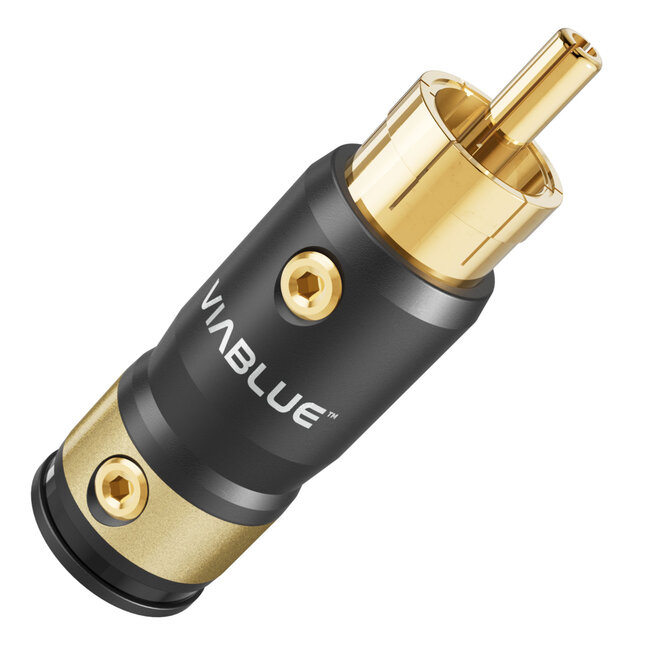

ViaBlue T8 RCA Plugs: High-End Connection Solutions for Ultimate Sound Quality

The ViaBlue T8 RCA Plugs are the ideal choice for those who want to get the best out of their audio equipment. Combining innovative technology, premium materials, and thoughtful design, these plugs deliver unparalleled signal transmission. Below, we highlight the unique features, benefits, and technical specifications of the ViaBlue T8 RCA Plugs.

Features and Benefits

The ViaBlue T8 RCA Plugs offer numerous functionalities and options for various cable types. Key features include:

• Specially Designed Contact Crown: Ensures optimal contact pressure and a stable, secure connection.
• 24-Carat Gold-Plated Contacts: Made with genuine gold for maximum corrosion resistance and superior signal quality.
• High-Quality Housing: Made from robust and elegant aluminum, combining durability with style.
• Strain Relief: A secure cable connection is ensured with an M4 hexagon socket screw (1.5 mm Hexagon).

Available in two versions:

1. Solder Version: Suitable for cables with a diameter of 4 to 9.5 mm, including diameter reducers for an optimal fit.
2. Screw Version: Designed for cables with a diameter of 6 to 8 mm, featuring a fully shielded grounding body and dual strain relief.

Additional Features and Assembly Instructions

Solder Version

This variant offers flexible installation with fully removable contacts, allowing for easy soldering of cables. The diameter reducers enable professional assembly, even with thinner cables (from 3 mm).

Assembly Instructions:

1. Strip the cable ends.
2. Completely detach the contact part from the aluminum housing.
3. Solder the cable securely to the contact part and reassemble the plug.

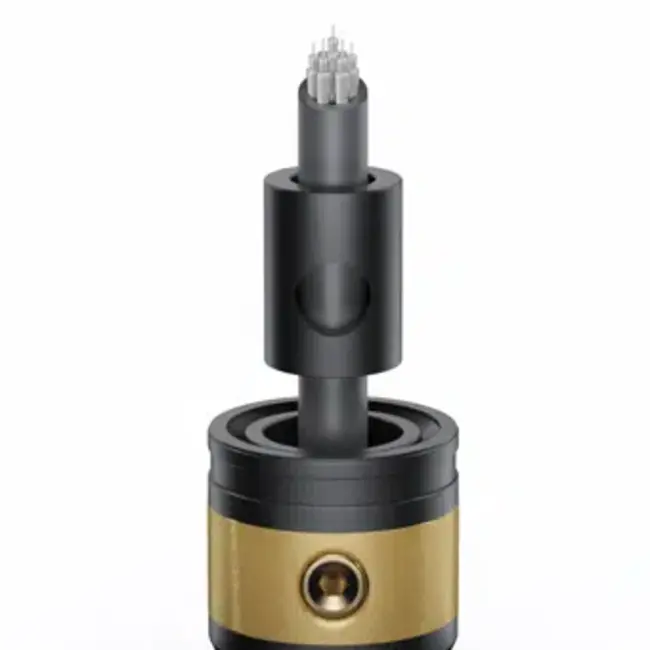

Screw Version

In this version, the cable is inserted through the pin cylinder. The grounding (braided or stranded shielding) is pressed firmly into place, and excess material is removed. Screw connections ensure reliable fixation without the need for soldering.

Assembly Instructions:

1. Insert the stripped cable through the insulation into the pin cylinder.
2. Wrap the grounding around the cable insulation and press it firmly into place.
3. Secure the cable using the pin screw, the inner strain relief screw, and the outer screws.

Diameter Reducers

The diameter reducers decrease the inner diameter of the cable mount, allowing for a centered and stable fixation of smaller cables (from 3 mm). This improves stability, signal transmission, and the professional appearance of the setup.

Technical Details

• Diameter: 13.5 mm
• Housing Length: 30.5 mm
• Solder Version: For cables Ø 4 - 9.5 mm; solder tub inner Ø: 3 mm
• Screw Version: For cables Ø 6 - 8 mm; inner pin Ø: 2.8 mm

Why Choose ViaBlue T8 RCA Plugs?

The ViaBlue T8 RCA Plugs combine functionality, durability, and design to deliver an exceptional audio experience. Whether you opt for the solder or screw version, these plugs provide a reliable and professional solution for all your audio needs. Thanks to their innovative features and high-quality materials, these RCA plugs are the perfect choice for those seeking uncompromising sound quality.
