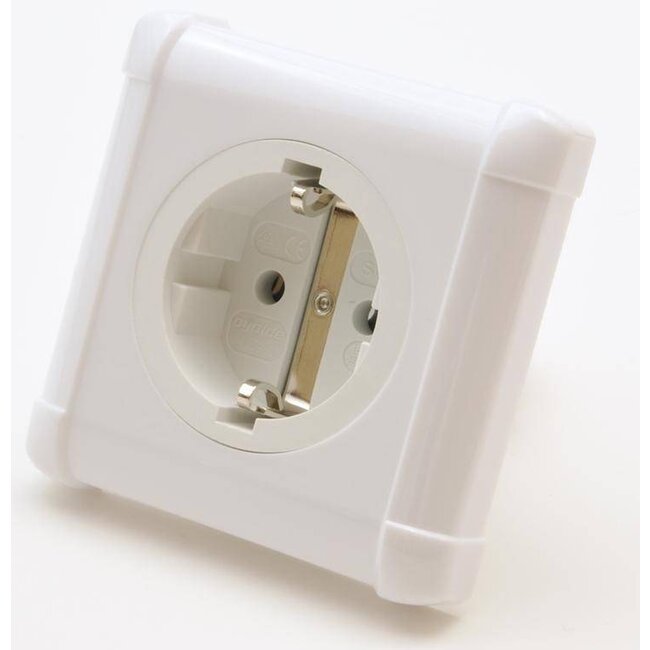

Oyaide SWD-XXX-E

These wall sockets have been completely redesigned to ensure optimal contact with the plug. The double spring clamp structure was specially developed for the SWO-E series. Thanks to the high clamping force and a contact surface of no less than 9 millimeters, the inserted pins are held securely and vibration is prevented, minimizing signal loss.

The plastic parts are made of PBT (Polybutylene Terephthalate), 30% of which is glass-injected. This not only results in excellent mechanical properties but also perfect electrical insulation.

Because the wall plate and the socket are molded together, high-frequency vibrations are effectively suppressed. The tight connection between the plastic parts and the metal electrodes also prevents unwanted vibrations.

Cooling fins are mounted on the back to dissipate any heat. The cover plate is made of polycarbonate, which is not only highly impact-resistant but also helps prevent vibration. Its glossy finish also makes the wall socket a beautiful style element in your room.

All metal components, from the 0.6 mm thick contacts to the oxidation-free screws, are made of non-magnetic material.

The contacts can handle an installation wire of up to 2.6 mm², and the screws can be tightened so tightly that a tensile force of up to 30 kilos does not pose any risk of loosening.

To optimally combine with the Oyaide Schuko plugs, three variants are available:
