The Nagaoka MP-110 combines a warm, balanced presentation with reliable tracking. This high-output Moving Permalloy cartridge uses a ½-inch mount and works with a standard MM phono input. Read more.

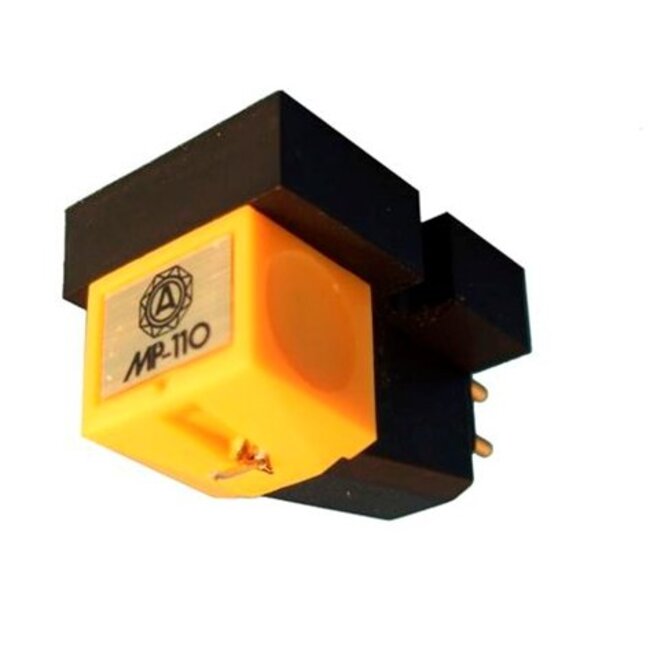

The Nagaoka MP-110 is a Moving Permalloy cartridge with a full, balanced and engaging musical presentation. Its superfine polished elliptical diamond accurately follows the record groove, while the lightweight aluminium-alloy cantilever responds quickly to subtle musical changes. With a healthy 5 mV output, the MP-110 connects directly to a standard MM phono input. It is an excellent Japanese upgrade for listeners seeking greater detail, dynamics and composure from their record collection without moving to a low-output MC system.
Explore all Nagaoka cartridges. The original Nagaoka JN-P110 replacement stylus is available separately. For a cartridge supplied pre-mounted on a headshell, choose the Nagaoka MP-110H.
| Operating principle | Moving Permalloy, high output |
| Mounting | ½ inch |
| Stylus | Superfine polished bonded elliptical diamond |
| Stylus dimensions | 0.4 x 0.7 mil |
| Cantilever | Aluminium alloy |
| Frequency response | 20 Hz - 20 kHz |
| Output voltage | 5 mV at 1 kHz and 5 cm/s |
| Tracking force | 1.5 - 2.0 g; 1.8 g recommended |
| Channel separation | More than 23 dB at 1 kHz |
| Channel balance | Less than 1.5 dB at 1 kHz |
| Recommended load resistance | 47 kOhm |
| Dynamic compliance | 6 x 10-6 cm/dyne |
| Static compliance | 18 x 10-6 cm/dyne |
| Weight | 6.5 g |
| Replacement stylus | Nagaoka JN-P110 |
The MP-110 fits tonearms and headshells with a standard ½-inch mounting system. Check that the tonearm counterweight supports the cartridge’s 6.5-gram weight. Align the cartridge accurately according to the tonearm geometry and begin with a tracking force of 1.8 grams. Connect it to a standard 47 kOhm MM phono input. This version is supplied without a headshell.
