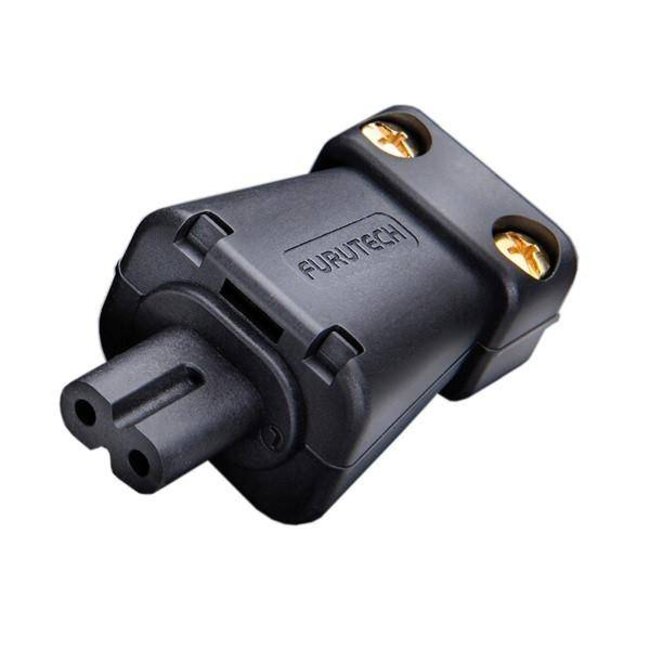

The Furutech FI-8N Gold is a premium IEC C7 figure-8 connector with gold-plated α conductors, secure cable clamp and screw termination for high-end power cables. Read more.
The Furutech FI-8N Gold is a high-quality IEC C7, or figure-8, cable connector designed for music lovers and hi-fi enthusiasts building or upgrading a premium power cable. Its combination of high-grade α (Alpha) conductors, gold-plated contact surfaces and robust construction makes it an excellent choice for demanding audio and AV applications.
The FI-8N Gold is designed for equipment using a 2-pole IEC C7 power inlet. This compact connection is commonly found on a variety of audio components, power supplies, network devices and other equipment using a figure-8 mains connection.
Furutech's specially developed female conductor design uses α (Alpha) beryllium copper and phosphor bronze conductors. The Gold version features gold-plated contact surfaces, providing a durable and reliable electrical interface for a carefully assembled high-end power cable.
A quality power connection involves more than the cable itself. Contact quality, mechanical stability and secure conductor termination are equally important when creating a reliable connection between the mains cable and the connected equipment.
The Furutech FI-8N Gold accepts power cables with an outer diameter of 6.0 to 13.0 mm. Solid-core conductors up to 2.4 mm in diameter can be accommodated, while stranded conductors can have a maximum cross-section of 2.0 mm² / 14 AWG.
The conductors are secured using set screws, so soldering is not required. When correctly installed, this provides a solid and repeatable mechanical connection.
The main body of the FI-8N Gold is made from nylon and fibreglass, while a polycarbonate cable clamp secures the power cable. This helps provide dependable strain relief and protects the internal conductor connections from unnecessary mechanical stress.
With overall dimensions of approximately 36.8 × 28.2 × 71.0 mm, the connector remains relatively compact while providing sufficient space for premium power cables.
Furutech is a renowned Japanese manufacturer of premium audio connectors, power products, cables and accessories. Its Pure Transmission philosophy focuses on carefully optimising every connection within the power and signal path.
High-quality materials, precision engineering and close attention to both electrical and mechanical properties have made Furutech a recognised name among demanding hi-fi enthusiasts around the world.
| Brand | Furutech |
| Model | FI-8N Gold / FI-8N(G) |
| Type | IEC C7 / figure-8 cable connector |
| Conductor material | α (Alpha) beryllium copper and phosphor bronze |
| Finish | Gold plated |
| Body | Nylon / fibreglass |
| Cable clamp | Polycarbonate |
| Cable diameter | 6.0 – 13.0 mm |
| Solid-core wire | Maximum Ø 2.4 mm |
| Stranded wire | Maximum 2.0 mm² / 14 AWG |
| Termination | Set screw |
| Rating | 7A / 125V – 2.5A / 250V |
| Dimensions | 36.8 × 28.2 × 71.0 mm ± 0.5 mm |
Discover our complete range of Furutech products and explore our selection of premium Power Plugs & Inlets for high-quality hi-fi installations.
The Furutech FI-8N Gold is an excellent choice for anyone looking for a carefully engineered and dependable IEC C7 connector for a premium audio power cable.
