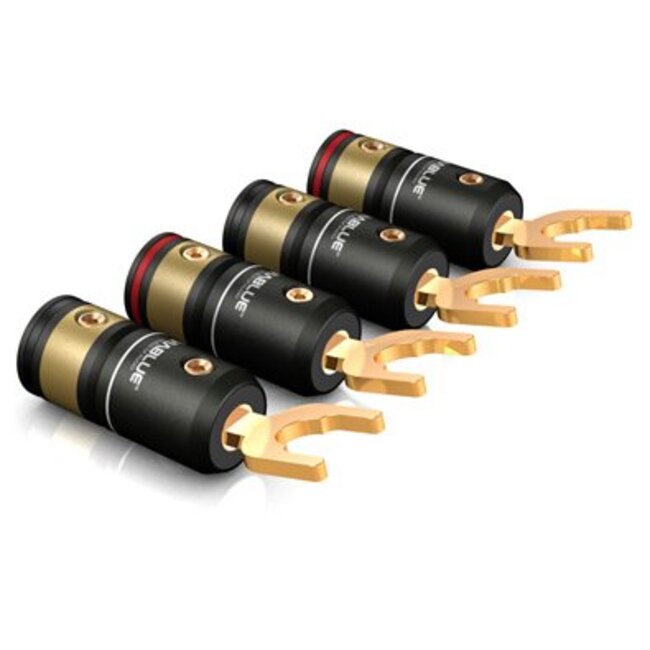

ViaBlue™ T6s spades plug have 24 carat gold-plated contacts. The shells are made of aluminum. Cables up to 9.5 mm diameters can be installed. All connectors of the T6s series are supplied including two diameter decreasers. Those diameter decreasers make an assembly of cables with small and big diameter possible and grant a firm strain relief.
For the assembly the stripped cable ends are soldered at the contact parts of the T6s plugs. The contact part can be removed completely from the plug's shell. The M4 screw serves as strain relief. The shell for all plugs (exception: XLR plugs) of the ViaBlue™ T6s series is identical. Only the contact parts change.
Flexibly applicable. For all cable diameters.
Each T6s plug contains two diameter decreasers which serve for a firm strain relief and centric adjustment of the cables. The small diameter decreaser has an outer diameter of 7.5 mm and an inner diameter of 4.5 mm. Thus cables with an outer diameter of 3 mm up to 4.5 mm can be fixed firmly. The big diameter decreaser has an outer diameter of 9.5 mm and an inner diameter of 7.5 mm. Thus cables with an outer diameter from 5 mm to 7.5 mm can be fixed firmly. Without using any diameter decreaser cables with diameters from 7.5 mm to 9.5 mm can be installed.
|Max outer diameter||13.5 mm|
|Contact||for 6 - 9.5 mm Ø jacks|
|Finishing||24 Karat Gold plated|
|Total length||46.8 mm|
|Max cable input||for cables with Ø 3 - 9.5 mm|
|Marking||black / red|
|Screws||1.5 mm Hexagon|
